RAM Mounts Mounting Kit for Sonim XP Pro, Pro Thermal & Pro E with Speaker, Microphone & Hardwire Bundle - Key-Locking - USB-A Port - 4-Hole AMPS - C Ball (1.5")
€743.95
Item not available - delivery time approx 7 weeks
Nationwide on-site installation service for vehicles and fleets. Professional and tailored to your RAM Mounts solution.

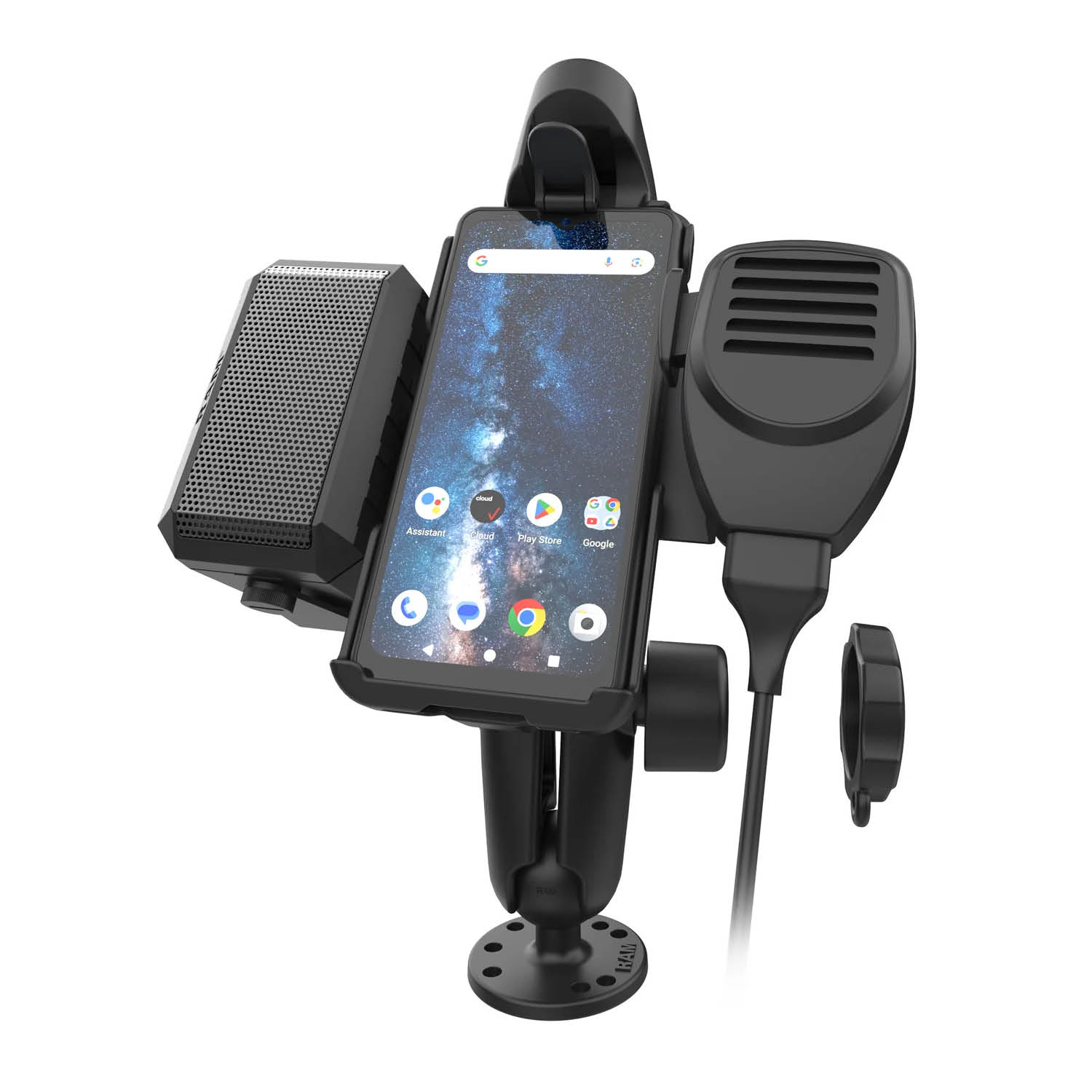

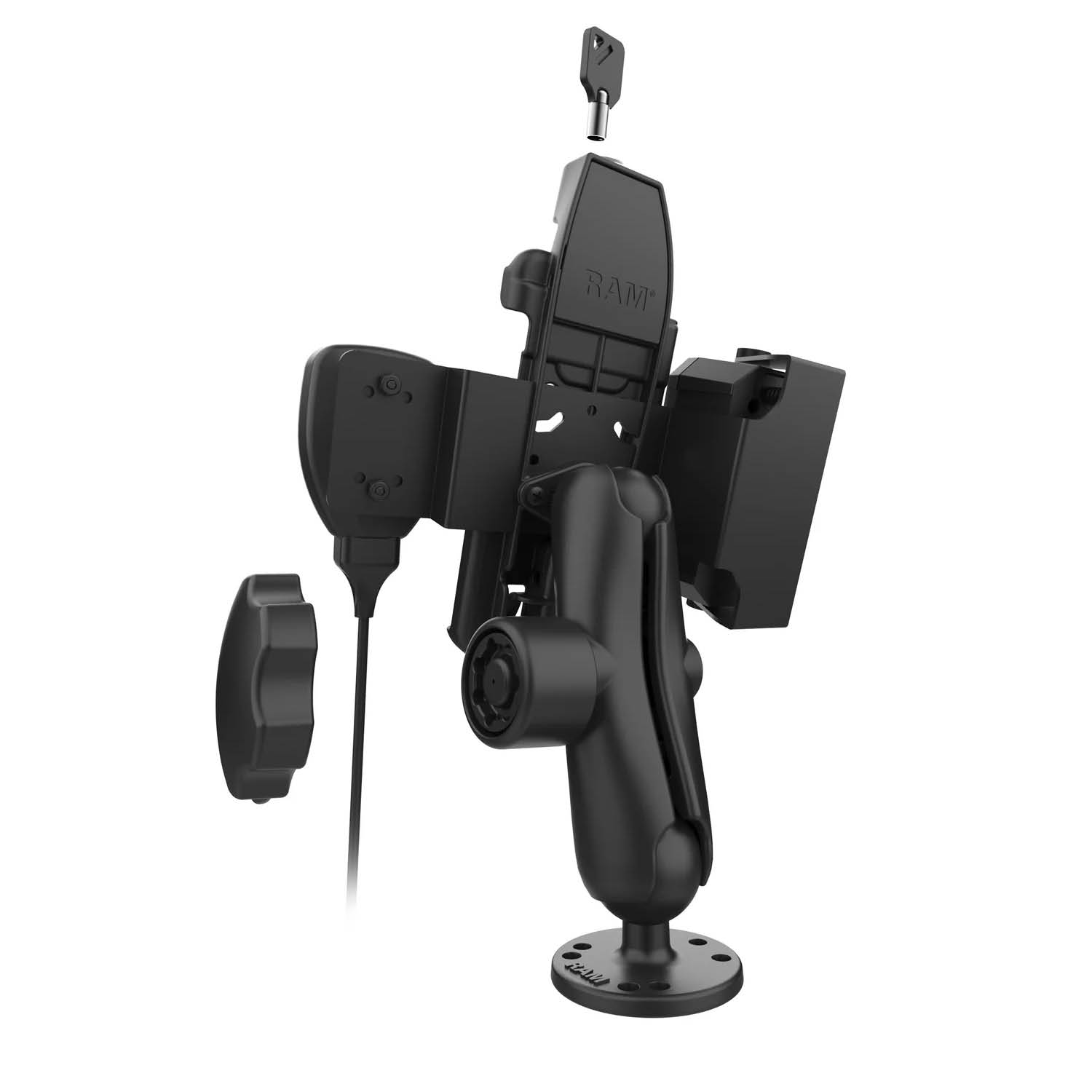

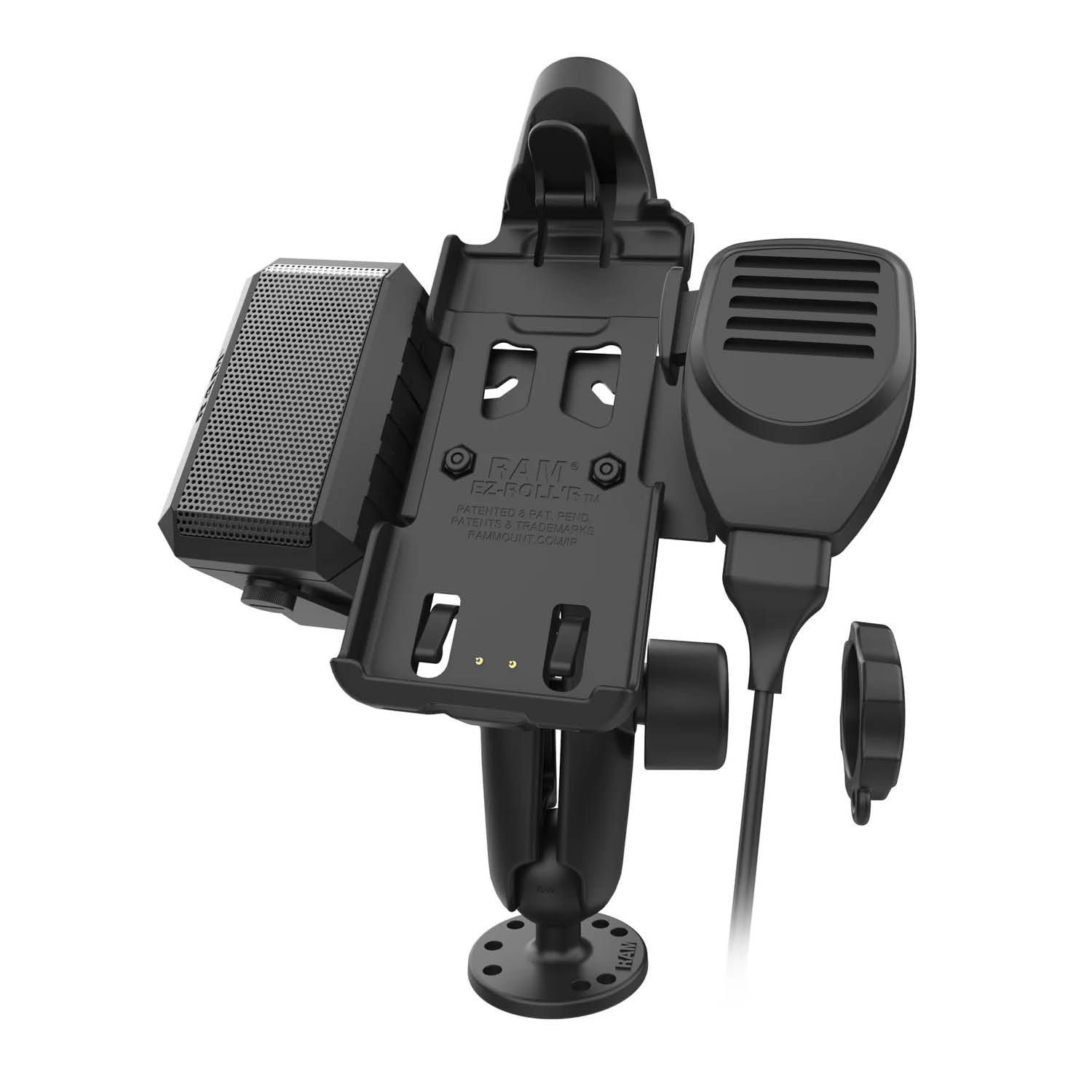

The RAM Mounts vehicle mount RAM-138-S-SNM5PL-V7B1U combines an EZ-Roll’r charging dock for the Sonim XP Pro, XP Pro Thermal & XP Pro E with a separate speaker and microphone.
Two integrated pogo pins charge the device via the USB-A connection.
A vehicle hardwire charger connects the system to a 10-30 V DC power source.
The round ball base with backing plate, diamond base plate and medium socket arm provide flexible positioning.
The dock has a key lock, while a Pin-Lock knob provides additional security at the arm.
Product Features RAM Mounts RAM-138-S-SNM5PL-V7B1U:
- Device Compatibility: Sonim XP Pro, XP Pro Thermal & XP Pro E
- Key-Locking EZ-Roll’r Dock and Pin-Lock Knob
- Charging via 2 Pogo Pins
- Material: Aluminum / High-Strength Composite / Powder-Coated Steel
- Ball Diameter: 38.1 mm (1.5", C Size)
- Round Base Plate Diameter: 63.5 mm
- Hole Pattern: 2-Hole AMPS: 48.56 mm
- Hole Pattern: 4-Hole AMPS: 30 x 38 mm
- Additional Hole Pattern: 3-Hole, 120° - Bolt Circle Diameter: 46.02 mm
- Socket Arm Dimensions: Overall Length 144.53 mm - Socket-to-Socket Length: 118.36 mm
- Input Connector: USB-A Male
- Input Voltage: 10-30 V DC
- Output Voltage: 5-9 V DC
- Output Power: Max. 2.5 A
- Input Cable Length: 120 cm
- Output Cable Length: 20 cm
- Speaker: 8 Ohm / 10 W
- Maximum Volume Level: 100 dB
- Independently Adjustable Volume
- Operating Temperature: -10 °C to +70 °C
- Storage Temperature: -40 °C to +70 °C
- Overvoltage, Short-Circuit and Reverse Polarity Protection
- Weight Capacity: Up to Approx. 1.81 kg for Standard Use / Up to Approx. 1.36 kg for Heavy-Duty Use
- Weight: Approx. 2.2 kg
Additional Note:
5 V output via USB 2.0 BC1.2 and DCP; 9 V via AFC and QC 2.0.
Pictured devices and additional RAM Mounts components are not included.
Only the RAM-138-S-SNM5PL-V7B1U mount set is supplied.
| Ball Size: | C-Kugel (1.5 Zoll bis 1.8 kg) |
|---|---|
| Hersteller: | National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
| Hole Pattern: | AMPS 4-Loch |
| Importer: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telephone: 030-917471-70 |
| Manufacturer: | Sonim |
| Mounting: | Schrauben |
| Responsible: | GF Kostja Dümke, info@rammounts.de, 030-917471-70 |
| Sonim: | XP Pro |
| Warnhinweis: | Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation! |
| EAN: | 793442026980 |
Components
RAM-HOL-SNM5PLU
(587038)
Available, delivery time: appr. 1-2 Working days
RAM-101-MIC3U
(410540)
Available, delivery time: appr. 1-2 Working days
RAM-SPEAK-A03
(587212)
Item not available - delivery time approx 7 weeks
RAM-MIC-A01
(585911)
Item not available - delivery time approx 7 weeks
RAM-138-225B2U
(587094)
Available, delivery time: appr. 1-2 Working days
RAP-S-KNOB5U
(411047)
Available, delivery time: appr. 1-2 Working days
RAP-CAB-SNM5U
(587084)
Available, delivery time: appr. 1-2 Working days
RAM-GDS-CAB-SAE-SPLIT
(585571)
Item not available - delivery time approx 7 weeks
RAM-GDS-CHARGE-V7B1U
(410393)
Available, delivery time: appr. 1-2 Working days
