RAM Mounts Quick-Grip™ Pro XL Universal Lenker-/Rohr-Halterung mit Vibrationsdämpfung & Qi2 15W Wireless Charger- B-Kugel (1 Zoll), Schraub-Klemme (12,7-31,8 mm), kurzer Verbindungsarm

The RAM® Quick-Grip™ Pro XL Vibration Damping Phone Mount & Qi2 15W Charger (RAM-B-149Z-A-PD7V-W2MU) is an ideal handlebar solution featuring the next evolution of the RAM® Quick-Grip™ series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed.

The RAM® Quick-Grip™ Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. This kit includes a zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Features

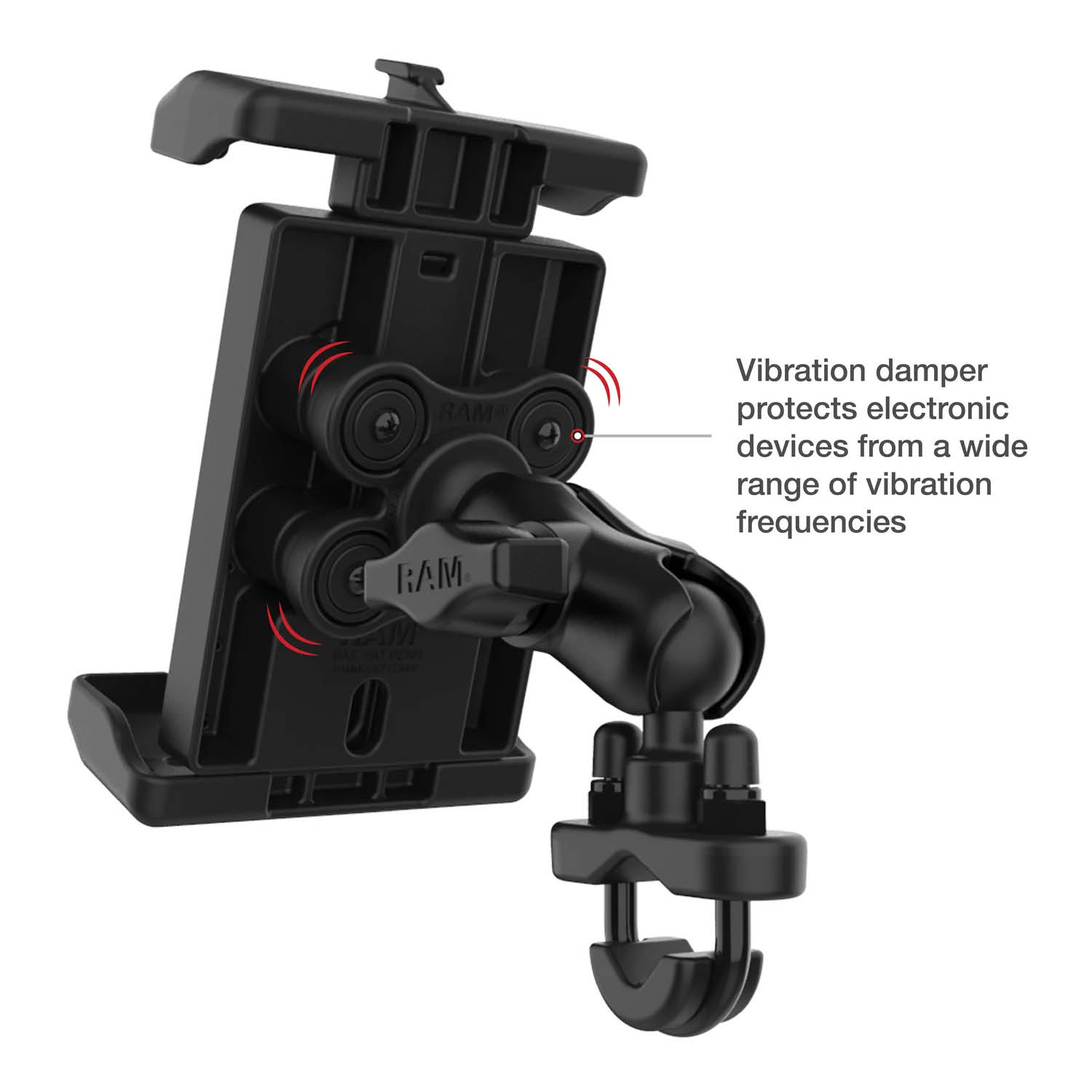

• Spring-loaded holder with integrated vibration damper provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand

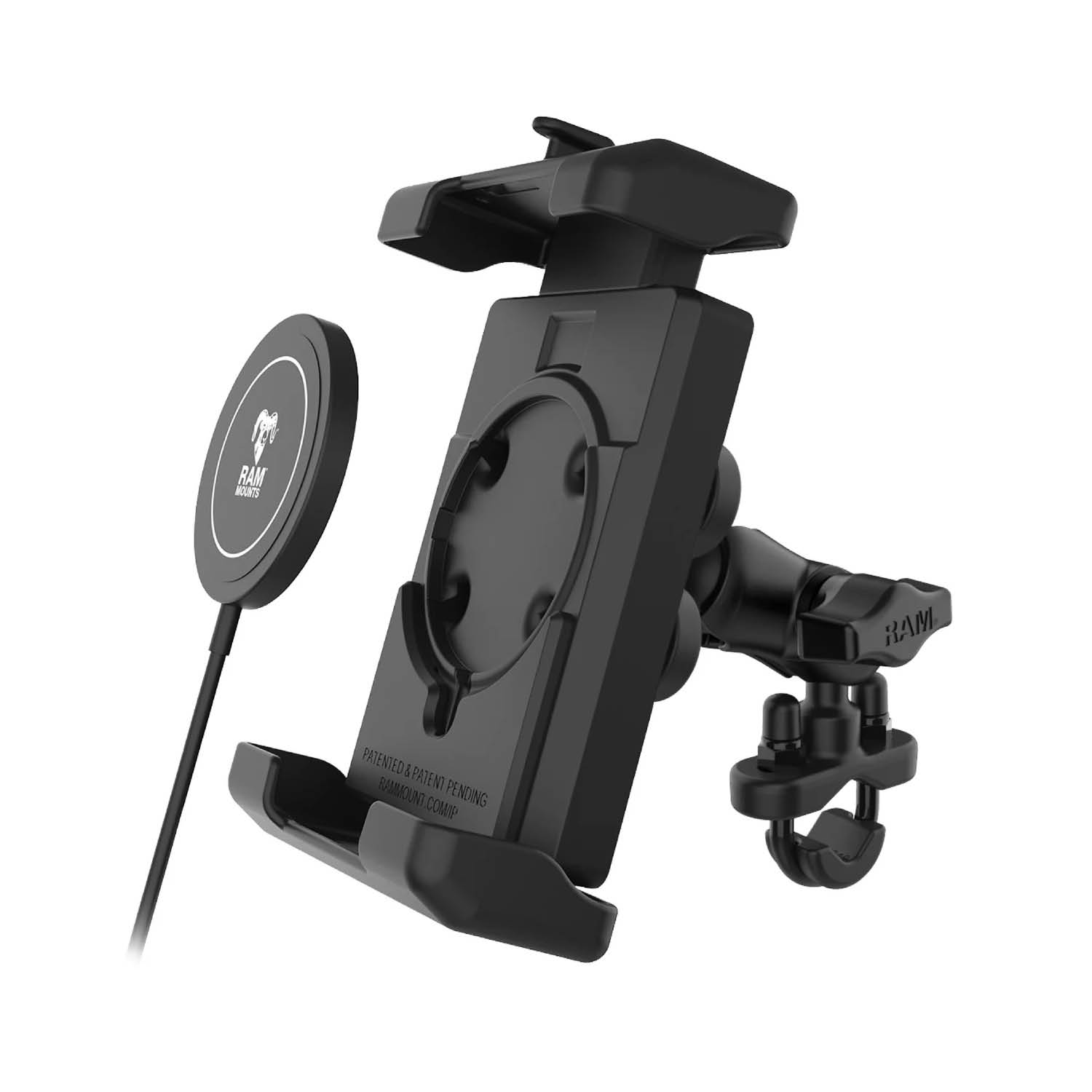

• Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
• Made of high-strength composite for durability and reliability; Wireless charger features IP67 waterproof rating for withstanding water and dust in the most extreme conditions
• Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

Holder dimensions - Height Range 5.375"-7", Width Range 2.75"-3.5", Max Depth 0.75"

Clamp range - 0.5"-1.25" diameter

Socket to socket length - 1.75"

Ball size - B Size (1")

Weight capacity - Standard Use 2 lbs, Heavy-Duty Use 1 lb

Material(s) - Marine-grade aluminum, High strength composite

Power specifications:

Operating Frequency: 360KHZ

Stand-by Consumption ~ 0.008A / 8mA @5VDC

80% Wireless Power Transfer Efficiency or Greater

Supports USB 2.0 BC1.2 Power Supply (5V)

Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

Input voltage - USB 5V @ 3A, QC2.0 9V @ 2.22A, USB PD 2.0 5-15V @ 2A

Power Output - BPP 5W, EPP 7.5W, MPP 15W

Output connector - USB Type-C Male with USB-A Adapter

Output cable length - 1 m

Operating temperature - 0°C to +40°C

Storage temperature - -20°C to +80°C

Regulatory - Over Current Protection, Short Circuit Protection, Over Temperature Protection, RoHS Compliance, WEEE Compliance

Certifications - IP67, SAE J1455, FCC, CE, E-Mark, RCM
