RAM Mounts Tough-Claw Halterung mit Quick-Grip Pro XL Universal-Halteschale inkl. Qi2 15W Wireless Charger - B-Kugel (1 Zoll), Tough-Claw klein (Durchmesser 15,9-29,0 mm)

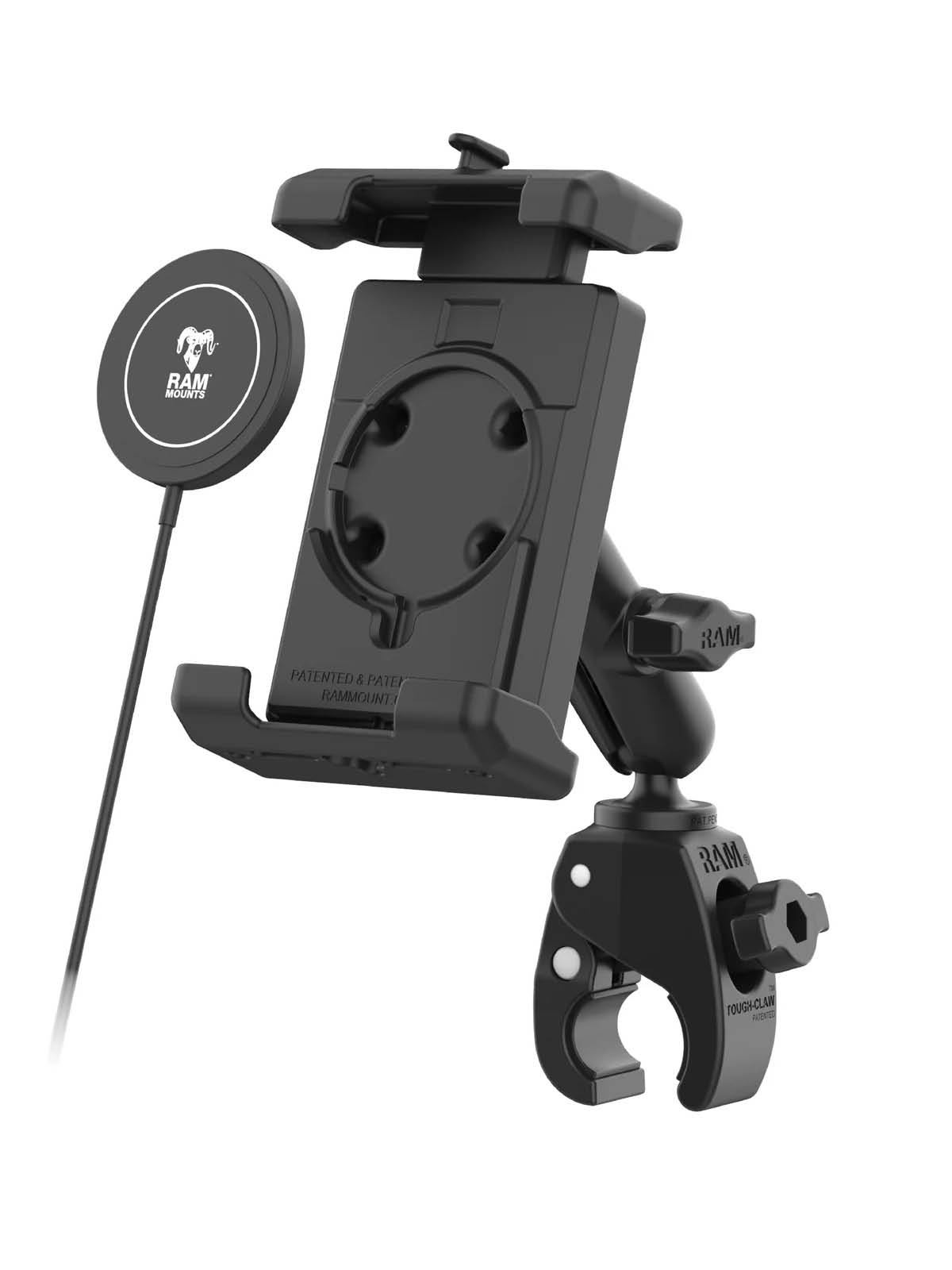

The RAM® Quick-Grip™ Pro XL Tough-Claw™ Mount with Qi2 15W Wireless Charger (RAM-B-400-PD7-W2MU) is a complete mounting and charging solution featuring the next evolution of the RAM® Quick-Grip™ phone holder series, engineered to be the most rugged universal holder yet for a wide range of phones and handheld devices. Included in this kit is the RAM® Qi2 15W Wireless Charger, transforming the holder into a convenient wireless charging solution for compatible devices.

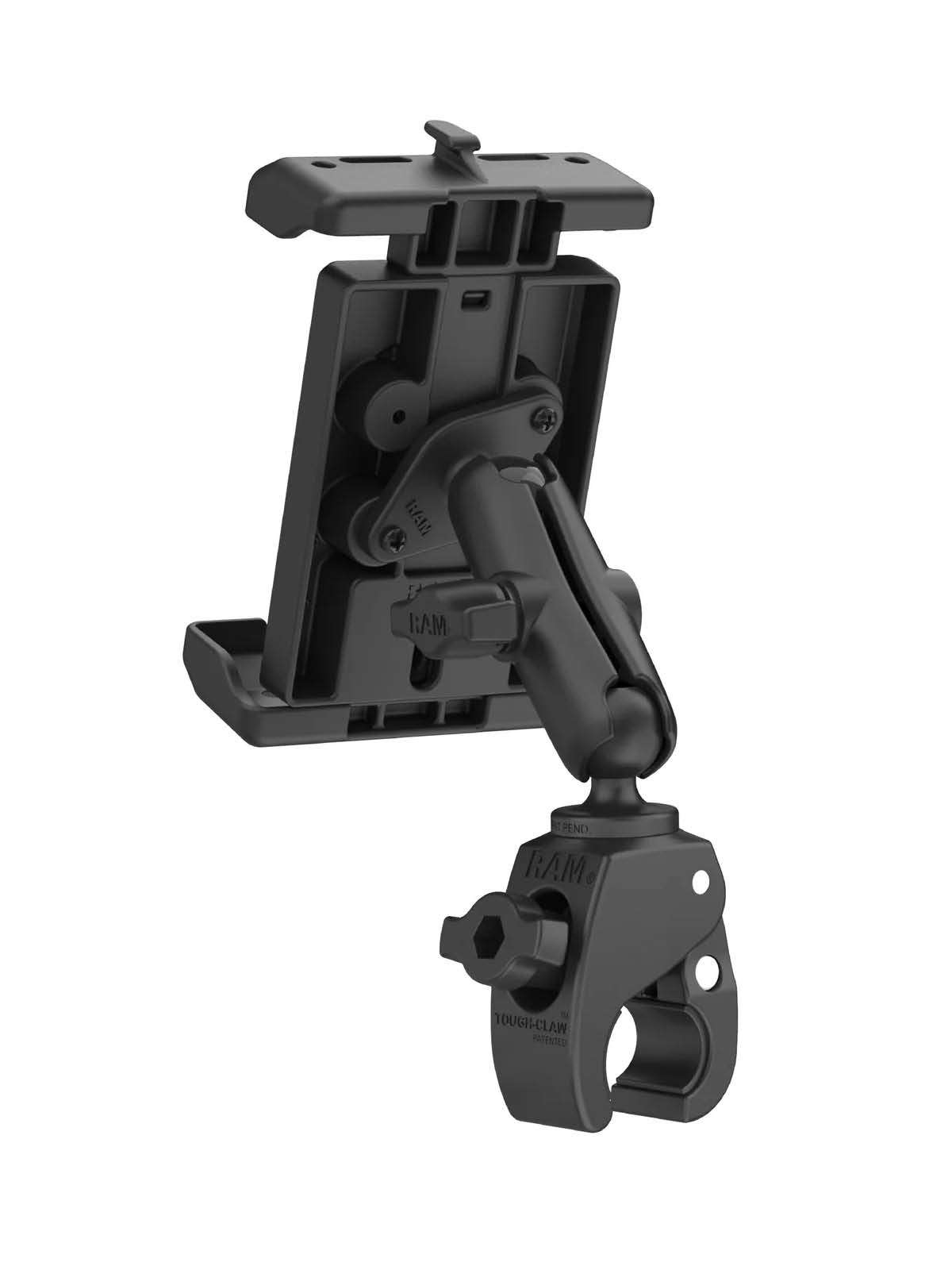

The spring-loaded RAM® Quick-Grip™ Pro XL allows for easy one-handed insertion and removal while maintaining a secure hold in demanding environments. Paired with the RAM® Tough-Claw™, this kit enables tool-free installation on round, square, and irregular-shaped rails and bars ranging from 0.625" to 1.14" in outer diameter. The RAM® ball and socket system provides near-infinite adjustability for optimal viewing angles. RAM® recommends using the included device tether in open-cockpit vehicle applications.

Verify the dimensions of your handheld device with any case, sleeve, or skin installed to ensure proper fitment.

Features

• Spring-loaded holder provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand
• Small Tough-Claw™ base accommodates round, square, and odd-shaped rails and bars from 0.625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
• Included RAM® Qi2 Wireless Charger allows for integrated wireless charging
• Comes with optional device tether for open cockpit environments

Specs

Holder dimensions - Height Range 5.375"-7", Width Range 2.75"-3.5", Max Depth 0.75"

Clamp range - 0.625"-1.14" diameter

Socket to socket length - 3"

Ball size - B Size (1")

Weight capacity - Standard Use 2 lbs, Heavy-Duty Use 1 lb

Power specifications:

Operating Frequency - 360KHZ

Stand-by Consumption - ~ 0.008A / 8mA @5VDC

80% Wireless Power Transfer Efficiency or Greater

Supports USB 2.0 BC1.2 Power Supply (5V)

Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

Input voltage - USB 5V @ 3A, QC2.0 9V @ 2.22A, USB PD 2.0 5-15V @ 2A

Power Output - BPP - 5W, EPP - 7.5W, MPP - 15W

Output connector - USB Type-C Male with USB-A Adapter

Output cable length - 1 Meter

Operating temperature - 0°C to +40°C

Storage temperature - -20°C to +80°C

Regulatory - Over Current Protection, Short Circuit Protection, Over Temperature Protection, RoHS Compliance, WEEE Compliance

Certifications - IP67, SAE J1455, FCC, CE, E-Mark, RCM
