RAM Mounts Aufbau-Set - D-Kugel (2,25 Zoll), runde Basisplatte (93,5 mm Durchmesser), mittlerer Verbindungsarm, VESA-Platte (75x75 u. 100x100 mm Lochraster)
D-Kugel

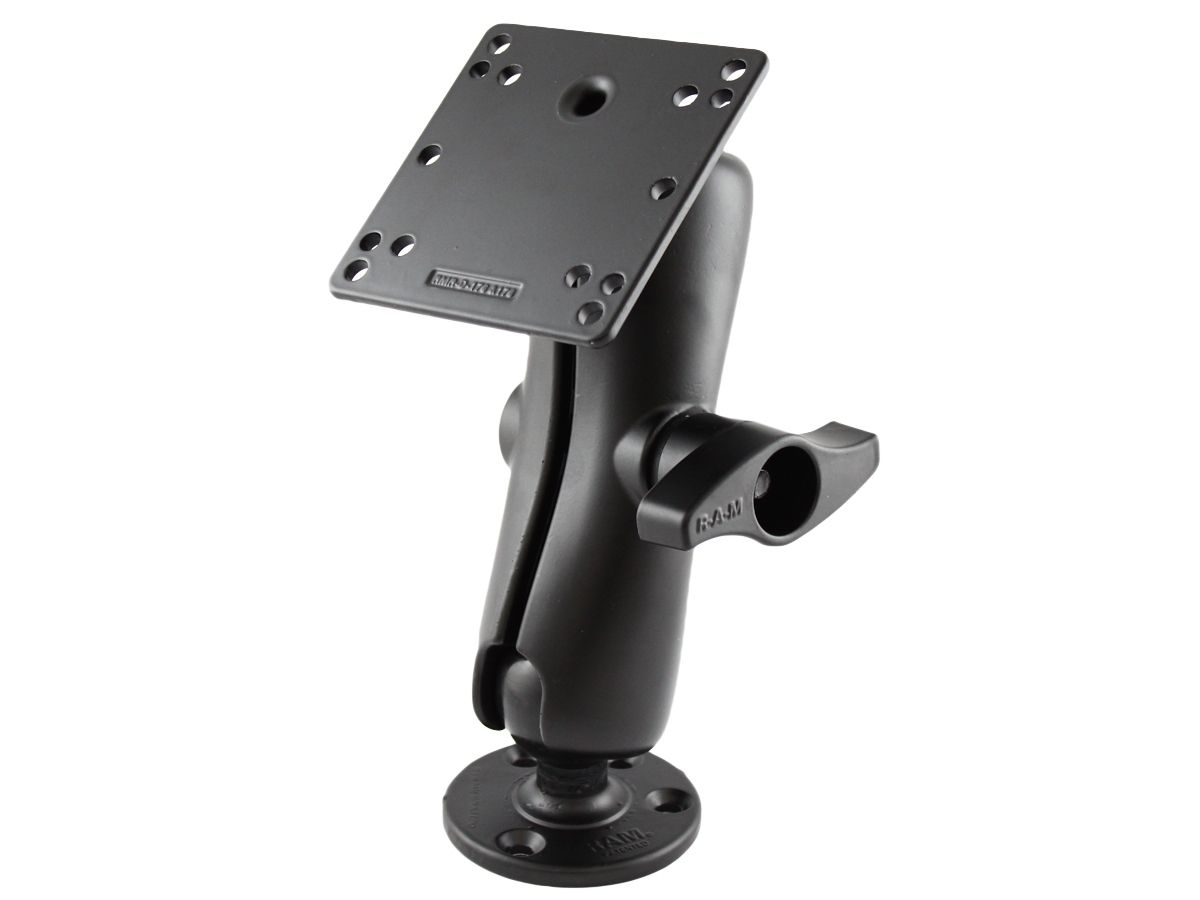

The RAM MOUNT 2.25" ball heavy duty universal assembly - RAM-D-101U-246 - consists of a round base plate with 2.25" ball connected at right angles to the 3.68" base, a standard size double socket arm (overall length 8.375"), and a 4.75" square VESA base with D-Ball. The patented rubber ball and socket system allowing for almost infinite adjustment and perfect viewing angles.
Round Base Plate: has a 2.25" diameter rubber ball connected at right angels to the 3.68" base. The base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.
Double Socket Arm: sockets at both ends accommodate 2.25" balls. Overall length 8.375", socket-to-socket length 6.5625".
VESA Plate: has a 2.25" diameter rubber ball connected at right angels to the 4.75" x 4.75" square face plate. Pre-drilled hole pattern for 100 mm and 75 mm VESA standard.
Material: Powder Coated Marine Grade Aluminum
Ball Size: 2.25" Rubber Ball (D-Ball size)
Color: black
| Ball Size: | D-Kugel (2.25 Zoll bis 2.7 kg) |
|---|---|
| EAN: | 793442003875 |
Components
RAM-D-246U
(410305)
RAM-D-201U
(410306)
RAM-D-202U
(410307)
Compatible
RAP-WASHS2-4U
(584709)
