RAM Mounts GDS Uni-Conn Charging Dock with Release Button - 2-Hole AMPS - USB-C & USB-C Connector - Screw Set
€269.95
Available, delivery time: appr. 1-2 Working days
Nationwide on-site installation service for vehicles and fleets. Professional and tailored to your RAM Mounts solution.
Planning a project? Our experts support you personally in finding the right solution. Free of charge & without obligation.

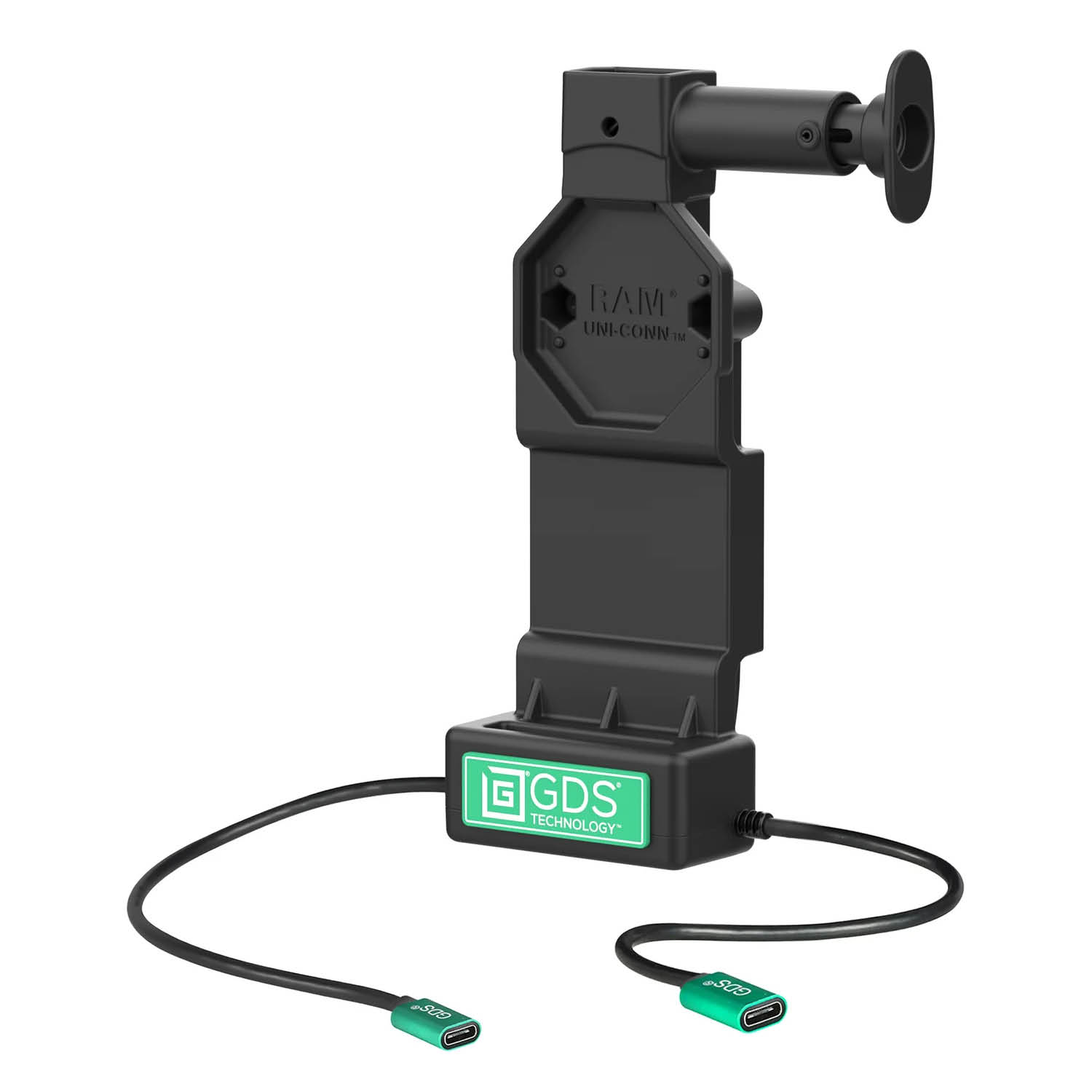

The RAM Mounts GDS Uni-Conn Snap-In Dock with release button is an innovative and versatile docking solution.
The integrated quick-release mechanism holds the device securely in place.
While docked, the device receives power through a pogo-pin connection supplied via USB-C.
An additional USB-C port allows you to connect a peripheral device.
The design makes docking and removal straightforward.

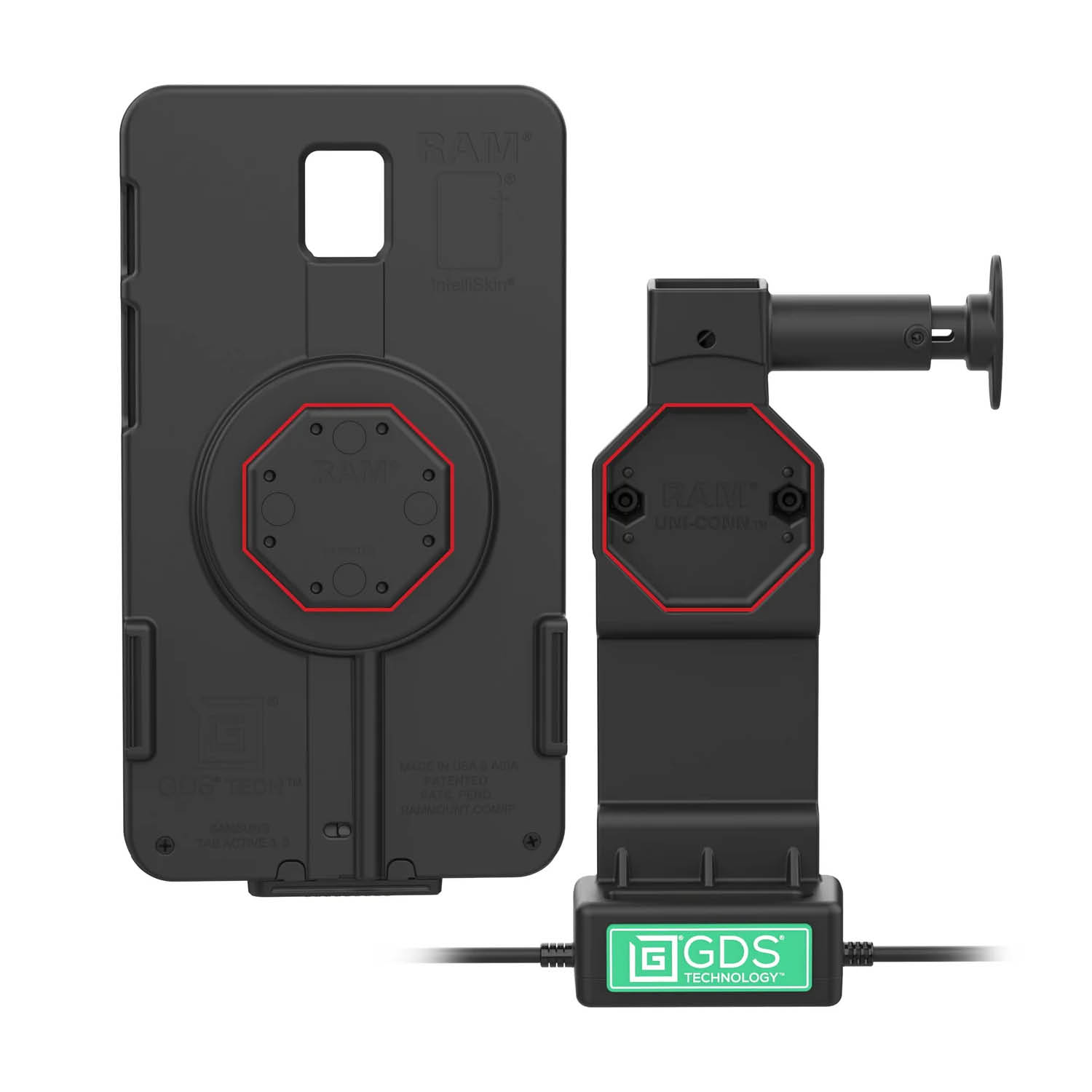

Simply place the device fitted with an IntelliSkin charging case into the dock and press gently until it clicks securely into place.
To remove the tablet, press the release button on the side and lift the device out.
To use the dock, the appropriate GDS Uni-Conn adapter (RAM-GDS-U1U or RAM-GDS-U1AU) must be installed on the designated IntelliSkin charging case.
Product Features RAM Mounts RAM-GDS-DOCK-U4CP-CU:
- Only compatible with IntelliSkin & Uni-Conn adapter
- Snap-In function
- Release button
- Easy insertion and removal
- Charging function
- Material: High-Strength Composite
- Hole Pattern: 2-Hole AMPS: 48.56 mm
- Input Connector: USB-C
- Power Output: max. 60W
- Output Voltage: 5 - 20V @ 3A
- Output Connector: USB-C (Peripheral output - 500mAh)
- Input Cable Length: ca. 215 mm
- Output Cable Length: ca. 215 mm
- Weight: Approx. 308 g
Additional information:
GDS Uni-Conn Snap-In Docks are not recommended for use in open-cockpit vehicles, such as forklifts.
For demanding applications, the GDS Tough-Dock is recommended.
Pictured devices are not included.
Only the RAM-GDS-DOCK-U4CP-CU mount is supplied.
| Hersteller: | National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
|---|---|
| Hole Pattern: | AMPS 2-Loch |
| Importer: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telephone: 030-917471-70 |
| Mounting: | Schrauben |
| Responsible: | GF Kostja Dümke, info@rammounts.de, 030-917471-70 |
| Warnhinweis: | Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation! |
| EAN: | 793442031175 |
