RAM Mounts GDS Vehicle Mount for Samsung XCover7 Pro & XCover6 Pro with IntelliSkin and PTT Speaker Microphone for Zello - Key-Locking - USB-C Port - 2- & 4-Hole AMPS - C Ball (1.5")
€1,094.95
Item not available - delivery time approx 7 weeks
Nationwide on-site installation service for vehicles and fleets. Professional and tailored to your RAM Mounts solution.
Planning a project? Our experts support you personally in finding the right solution. Free of charge & without obligation.

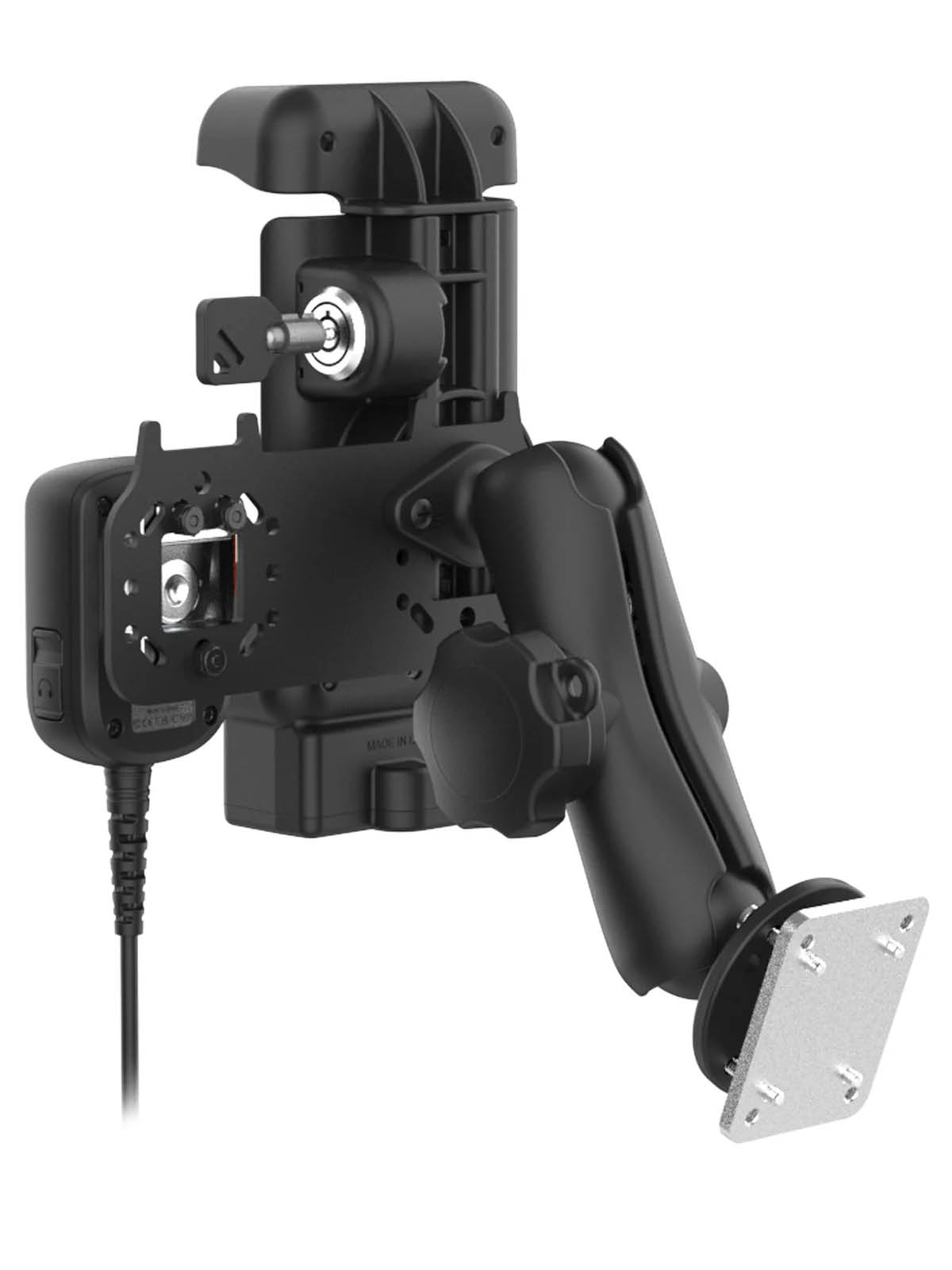

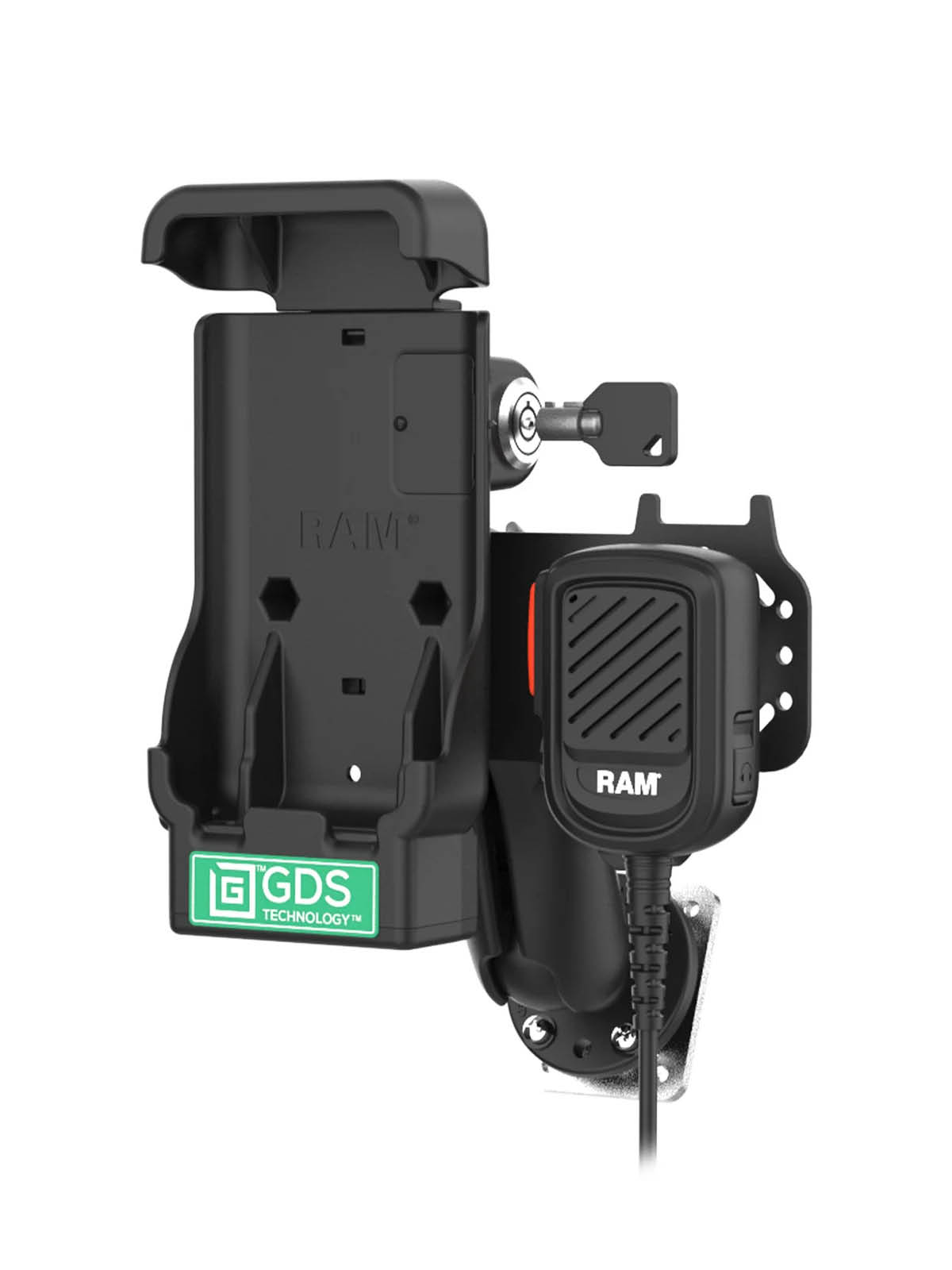

The RAM Mounts GDS vehicle mount RAM-GDS-DOCKL-V15-SAM84-RSM7 combines a locking charging dock with a compatible IntelliSkin charging case and a USB-C speaker microphone for Zello.
It is designed for the Samsung Galaxy XCover7 Pro and XCover6 Pro.
The spring-loaded holder allows easy insertion and removal, while pogo pins charge the docked device.
A round ball base with backing plate, diamond base plate and medium socket arm allow positioning in the vehicle.
A microphone mount, USB-C Y-split cable and vehicle hardwire charger complete the setup.
The dock key lock and Pin-Lock knob on the arm help deter unauthorized removal.
Product Features RAM Mounts RAM-GDS-DOCKL-V15-SAM84-RSM7:
- Device Compatibility: Samsung Galaxy XCover7 Pro / XCover6 Pro
- Compatible IntelliSkin Charging Case Forms Part of the Set
- Spring-Loaded Design for Easy Insertion and Removal
- Key-Locking Dock and Pin-Lock Knob
- PTT Platform: Zello
- Material: Steel / Aluminum / High-Strength Composite
- Ball Diameter: 38.1 mm (1.5", C Size)
- Round Base Plate Diameter: 63.5 mm
- Hole Pattern: 2-Hole AMPS: 48.56 mm & 4-Hole AMPS: 30 x 38 mm
- Additional Hole Pattern: 3-Hole, 120° - Bolt Circle Diameter: 46.02 mm
- Socket Arm Dimensions: Overall Length 144.53 mm - Socket-to-Socket Length: 118.36 mm
- Connector: USB-C
- Output Voltage: 5-12 V / 3 A
- Power Output: 15 W
- Input Cable Length: 380 mm
- Vehicle Charger Input Voltage: 10-30 V DC
- Microphone Operating Voltage: 1.2-5 V DC
- Microphone Current Consumption: 100-500 µA
- Microphone Output Impedance at 1 kHz: Max. 2.2 kOhm
- Signal-to-Noise Ratio at 1 kHz: At Least 60 dB
- Maximum Input Sound Pressure Level: 110 dB
- Speaker Microphone Ingress Protection: IP67
- Weight Capacity: Up to Approx. 1.81 kg for Standard Use / Up to Approx. 1.36 kg for Heavy-Duty Use
- Weight: Approx. 2.6 g
Additional Note:
Use only with the appropriate IntelliSkin charging case.
Pictured devices and additional RAM Mounts components are not included.
Only the RAM-GDS-DOCKL-V15-SAM84-RSM7 mount is supplied.
| Ball Size: | C-Kugel (1.5 Zoll bis 1.8 kg) |
|---|---|
| Hersteller: | National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
| Hole Pattern: | AMPS 4-Loch |
| Importer: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telephone: 030-917471-70 |
| Manufacturer: | Samsung |
| Marker: | N E W |
| Mounting: | Schrauben |
| Responsible: | GF Kostja Dümke, info@rammounts.de, 030-917471-70 |
| Samsung Phone: | XCover7 Pro & XCover6 Pro |
| Warnhinweis: | Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation! |
| EAN: | 793442037375 |
Components
RAM-GDS-SKIN-SAM84-C
(586996)
Item not available - delivery time approx 7 weeks
RAM-GDS-DOCKL-V15-SAM84-CU
(587447)
Item not available - delivery time approx 7 weeks
RAM-RSM-A07
(587592)
Item not available – available again on 02.11.2026
RAM-101-MIC4U
(587225)
Item not available - delivery time approx 7 weeks
RAM-238U
(410329)
Available, delivery time: appr. 1-2 Working days
RAM-201-SU
(580316)
Available, delivery time: appr. 1-2 Working days
RAM-202-225-2U
(410794)
Available, delivery time: appr. 1-2 Working days
RAM-CAB-CM2CF-1U
(587226)
Item not available - delivery time approx 7 weeks
RAM-GDS-CHARGE-V21CU
(587402)
Available, delivery time: appr. 1-2 Working days
