RAM Mounts GDS Uni-Conn™ Thin-Case™ Fahrzeug-Halterung für Samsung Tab Active5 - C-Kugel (1,5 Zoll), abschließbar, inkl. Hardwire Charger & Batterie-Schutz

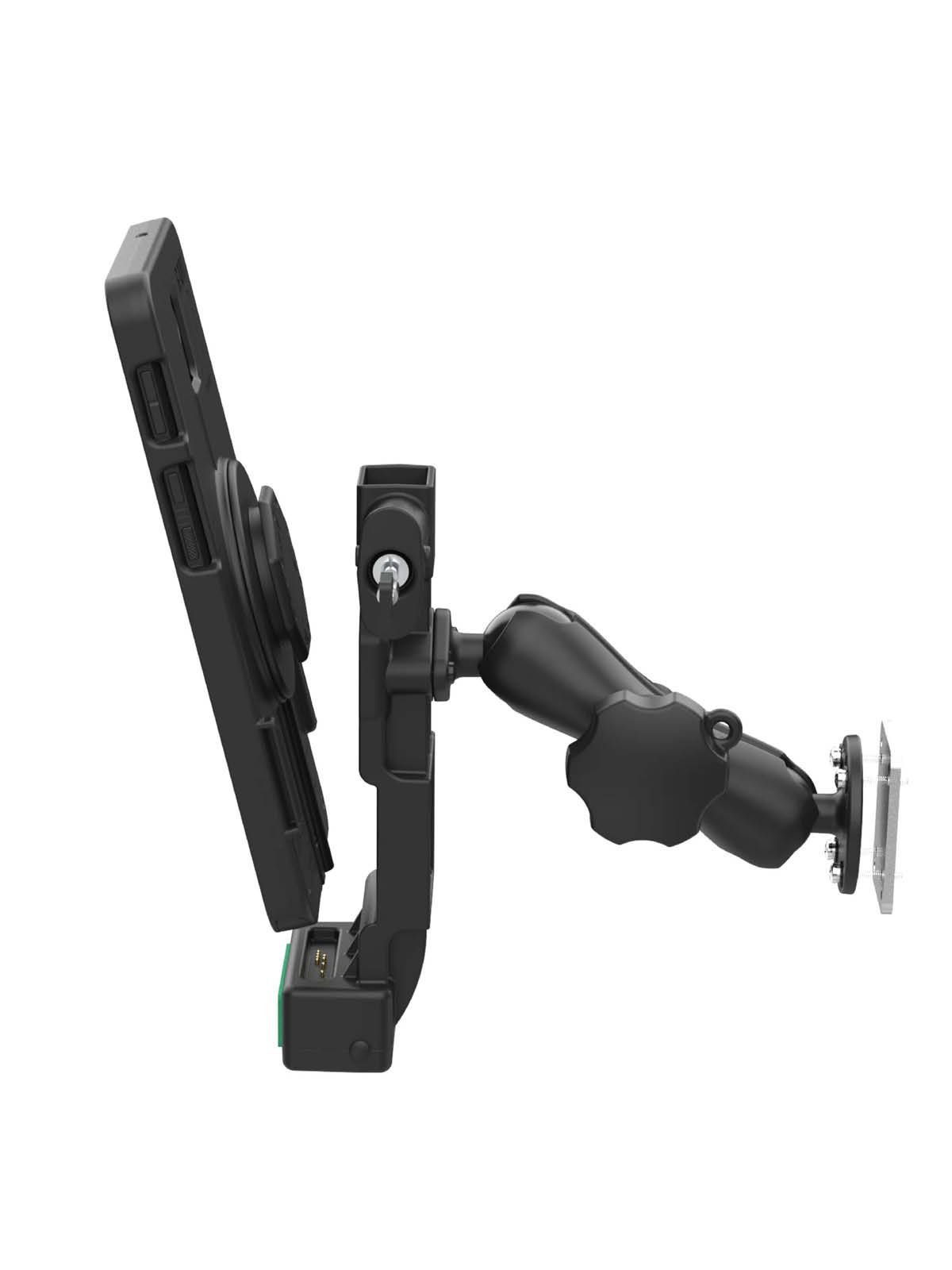

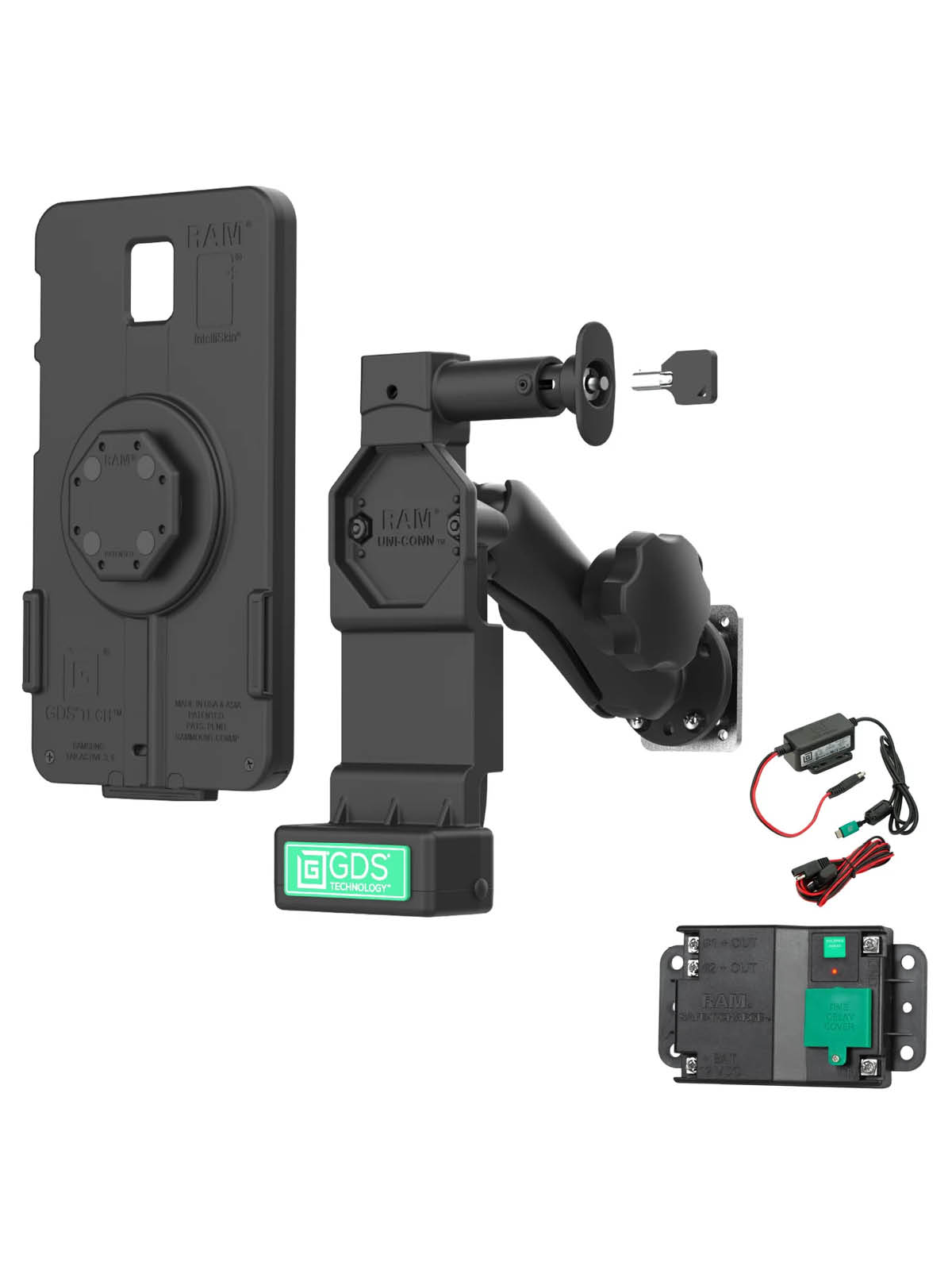

The GDS® Uni-Conn™ Locking Thin-Case™ Vehicle Kit for Samsung Tab Active5 (RAM-GDS-SAM93TCD-U4-V21C-SWT1) is a comprehensive kit of everything needed to deploy the Tab A11+ in your fleet. It contains one GDS® Uni-Conn™ locking dock with release button, Uni-Conn™ adapter, IntelliSkin® Thin-Case™ for the Tab Active5, hardwire charger, RAM® Safe-T-Charge™ Battery Protection System, and double ball mount with backing plate and locking knob.

The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, and also includes an RJ45 port for peripheral support. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a quick-release button frees the tablet.

Always Protected. Always Connected.® One Dock to Connect Them All™.

Features

• Bundle includes the GDS® Uni-Conn™ locking dock with release button, Uni-Conn™ adapter, IntelliSkin® Thin-Case™ for the Tab Active5, 10-30V hardwire charger with USB-C male connector, RAM® Safe-T-Charge™ Battery Protection System, and double ball mount with backing plate and locking knob
• Dock features GDS® Technology™ for charging capabilities via pogo pin connectors; uses USB-C female cable to connect to power and includes RJ45 connection for peripheral support
• Uni-Conn™ dock's key-lock and locking knob on arm provide additional theft deterrence
• Included RAM® Safe-T-Charge™ features automatic battery protection, cutting accessory power based on ignition state or battery voltage to prevent battery depletion

Specs

Socket to socket length - 4.66"

Ball size - C Size (1.5")

Weight capacity - Standard Use 4 lbs, Heavy-Duty Use 3 lbs

Input voltage - 10-30 VDC

Output voltage - 5-9 VDC

Output current - 2.5 A max.

Operating temperature - -10°C to +70°C

Storage temperature - -40°C to +70°C

Regulatory - Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant

Certifications - FCC, CE, UKCA, IC, E-Mark, RCM, IEC/UL 62368-1
