RAM Mounts Form-Fit Holder for Zebra ET401 (10") Tablets - In RAM Skin/Rugged Boot - 5.5mm DC Power & USB-A Connector €329.95*

RAM Mounts Form-Fit Holder for Zebra ET401 (10") Tablets - In RAM Skin/Rugged Boot - 5.5mm DC Power & USB-A Connector

€329.95

Item not available - delivery time approx 8 weeks

Product number: RAM-HOL-ZE45PDU

Product catalogue: Zebra Catalog EN

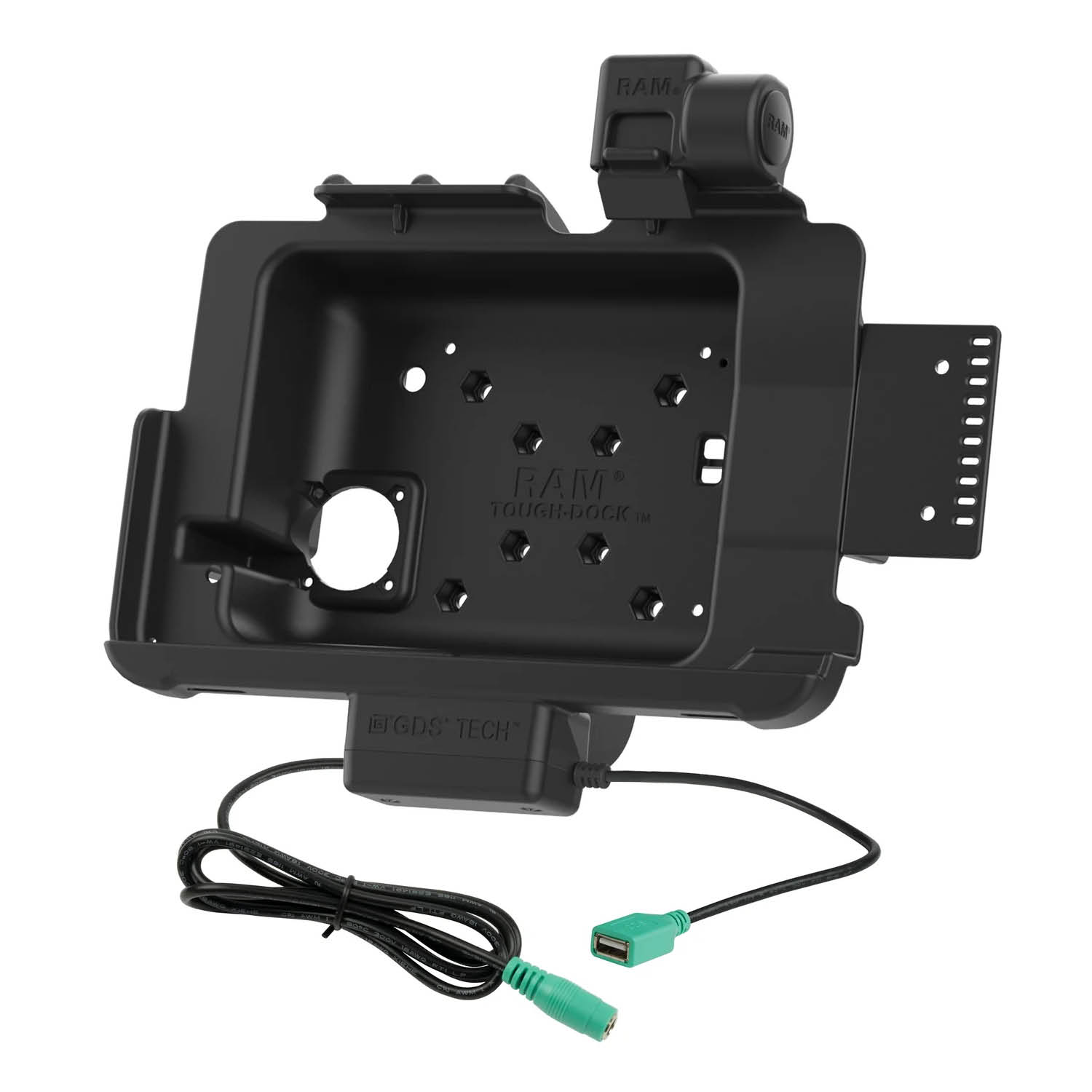

This RAM Mounts Form-Fit holder is compatible for Zebra ET401 (10“) series with an RAM Skin or Zebra Rugged Boot.
The holder is powered by a USB-C port and charges the device in the dock while peripheral support is provided by the built-in USB Type-A cable.

To insert the device, place the bottom of the device in the cradle and press it into the cradle until it clicks into position.
The cut-outs on the buttons and ports allow you to continue using them without any problems.
The cradle also features a cutout that allows the tablet’s scanning function to remain fully operational while docked.
It also provides space at the rear for tablet add-ons such as the Zebra Expansion Back, the PowerPack battery, as well as GDS Ergo accessories including the GDS Roto-Mag and the GDS Hand-Stand.

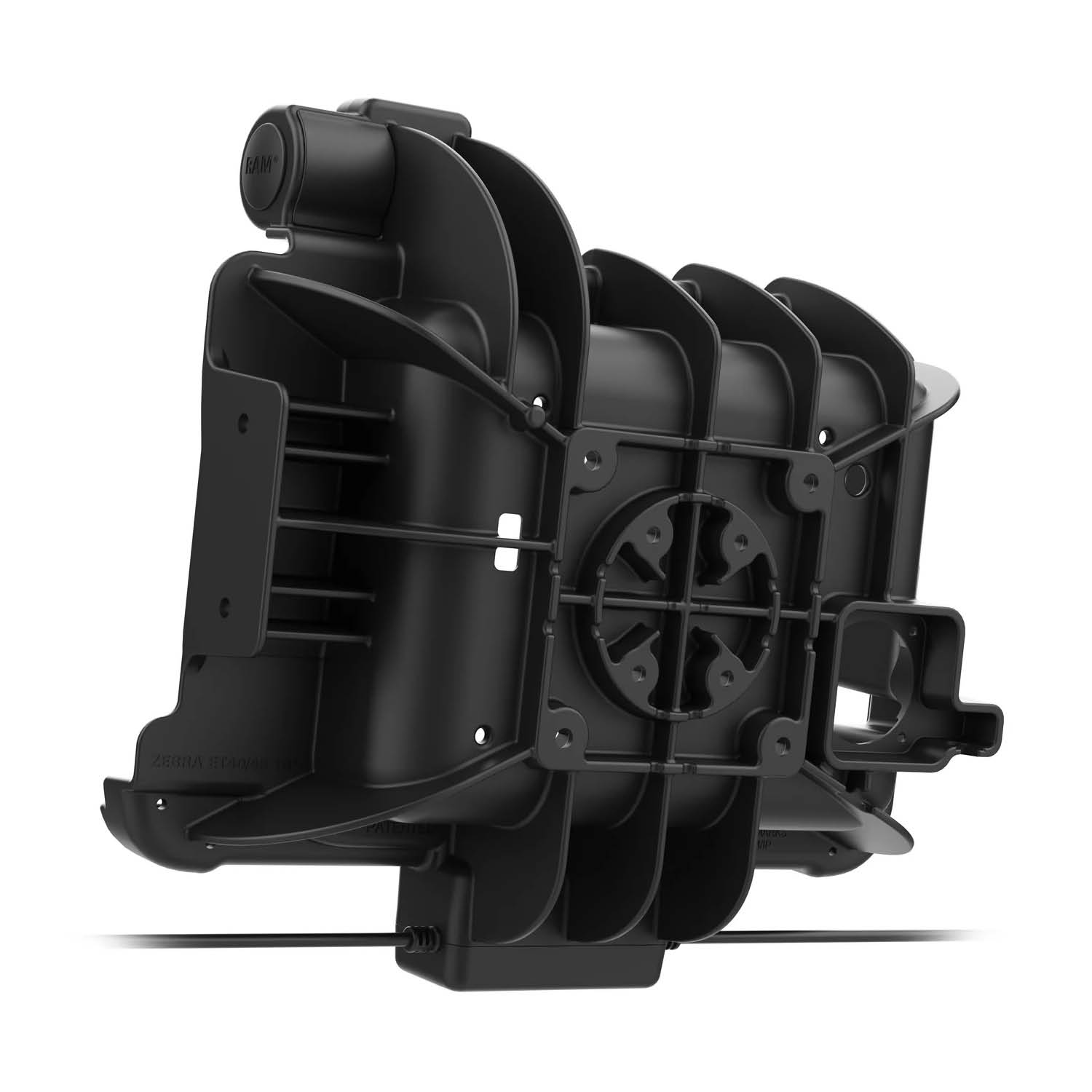

The back of the device holder is prepared to support a VESA 75x75 mm or round ball base (not included).

Product features RAM Mounts RAM-HOL-ZE45PDU:

Compatible with accessories
Easy insertion and removal
Additional mounting plate for attaching additional devices or accessories
Only for RAM Skin or Zebra Rugged Boot
Input Connector: 5.5mm DC
Output Connector: USB-A 2.0 (Peripheral output - 500mAh)
Transfer Speed: 12Mbps
Input Cable Length: ca. 100 cm
Output Cable Length: ca. 24 cm
Certifications: RoHS, WEEE, CE & UKCA
Weight: ca. 826 g

Additional information:
The mount can only be used in combination with a compatible RAM Skin (RAM-SKIN-ZE45) or Zebra Rugged Boot protective case.

Devices shown are not included in the delivery.

Only the RAM-HOL-ZE45PDU holder is supplied.

Hersteller:	National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com
Hole Pattern:	AMPS 4-Loch
Importer:	RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telephone: 030-917471-70
Manufacturer:	Zebra
Mounting:	Schrauben
Responsible:	GF Kostja Dümke, info@rammounts.de, 030-917471-70
Warnhinweis:	Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation!
Zebra Rugged PC:	ET401 (10 Zoll)
EAN:	793442032875
