RAM Mounts Thin-Dock for Zebra ET401 & ET4x (8") Tablets - With or without RAM Skin/Rugged Boot - 5.5mm DC Power Supply €349.95*

RAM Mounts Thin-Dock for Zebra ET401 & ET4x (8") Tablets - With or without RAM Skin/Rugged Boot - 5.5mm DC Power Supply

N E W

€349.95

Item not available

Product number: RAM-HOL-ZE46PU

Product catalogue: Zebra Catalog EN

This RAM Mounts Thin-Dock is compatible for the Zebra ET401 & ET4x (8“) series with or without a RAM Skin or the Zebra Rugged Boot.
The holder is powered by a 5.5mm DC connection and charges the device in the dock.

To insert the device, place the bottom of the device in the cradle and press it into the cradle until it clicks into position.
The cut-outs on the buttons and ports allow you to continue using them without any problems.
The cradle also features a cutout that allows the tablet’s scanning function to remain fully operational while docked.
Due to its compact design, this docking station does not support OEM accessories such as the Zebra Expansion Back or the PowerPack battery.

It features a low profile design with a depth of only 2.44 inches, reinforced with a durable metal plate, making it ideal for applications where space is limited.
With the integrated 2 hole mounting plate, compatible with diamond base plates, an additional device such as a smartphone, handheld scanner, or other accessories can be easily mounted.
The back of the device holder is prepared to support a VESA 75x75 mm or round ball base (not included).

Product features RAM Mounts RAM-HOL-ZE46PU:

Not compatible with tablet accessories

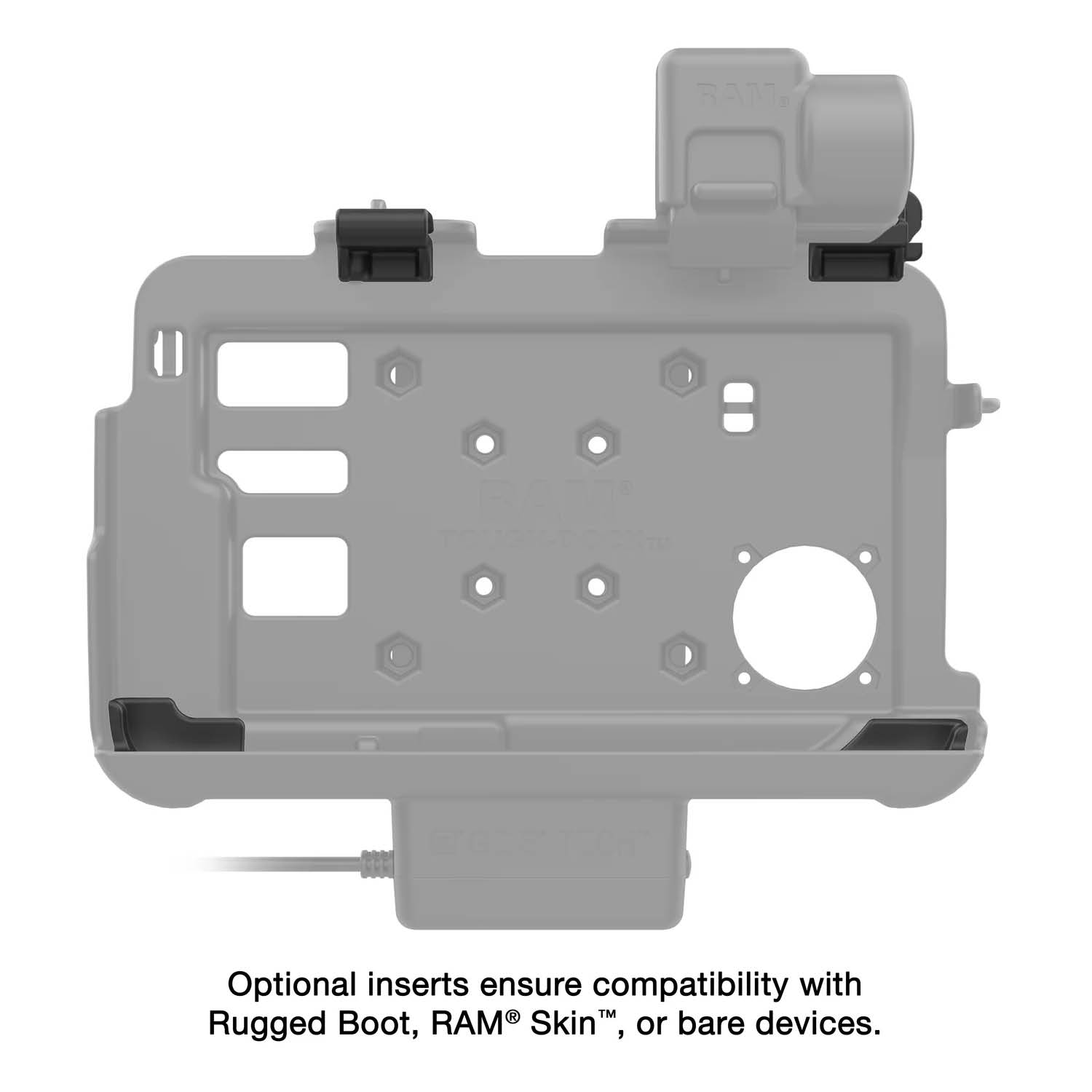

Optional spacers included
Integrated 2 hole mounting plate on the left side for an additional device
Easy insertion and removal
Additional option for using an NFC Extender or RAM Vent-Temp
Usable with or without RAM Skin or Zebra Rugged Boot
Input Connector: 5.5mm DC
Output Voltage: 12V @ 2A
Output Power: 24W
Input Cable Length: ca. 100 cm
Certifications: RoHS, WEEE, CE, FCC, IC & RCM
Weight: ca. 712 g

Additional information:
The holder can be used with or without a compatible RAM Skin (RAM-SKIN-ZE44) or Zebra Rugged Boot protective case.

Devices shown are not included in the delivery.

Only the RAM-HOL-ZE46PU holder is supplied.

Hersteller:	National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com
Hole Pattern:	75 x 75 VESA
Importer:	RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telephone: 030-917471-70
Manufacturer:	Zebra
Marker:	N E W
Mounting:	Schrauben
Responsible:	GF Kostja Dümke, info@rammounts.de, 030-917471-70
Warnhinweis:	Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation!
Zebra Rugged PC:	ET401 (8 Zoll)
EAN:	793442032455
