RAM Mounts Fahrzeug-Halterung Sonim XP5plus / XP5plus 5G - C-Kugel (1,5 Zoll), abschließbar, inkl. Mikrofon/Lautsprecher u. Kabel, 4-Loch AMPS
Erscheinungsdatum noch unklar.
Bundesweiter Vor-Ort-Einbauservice für Fahrzeuge und Flotten. Professionell & passend zu Ihrer RAM Mounts Lösung.
Planen Sie ein Projekt? Unsere Experten unterstützen Sie persönlich bei der passenden Lösung. Kostenlos & unverbindlich.

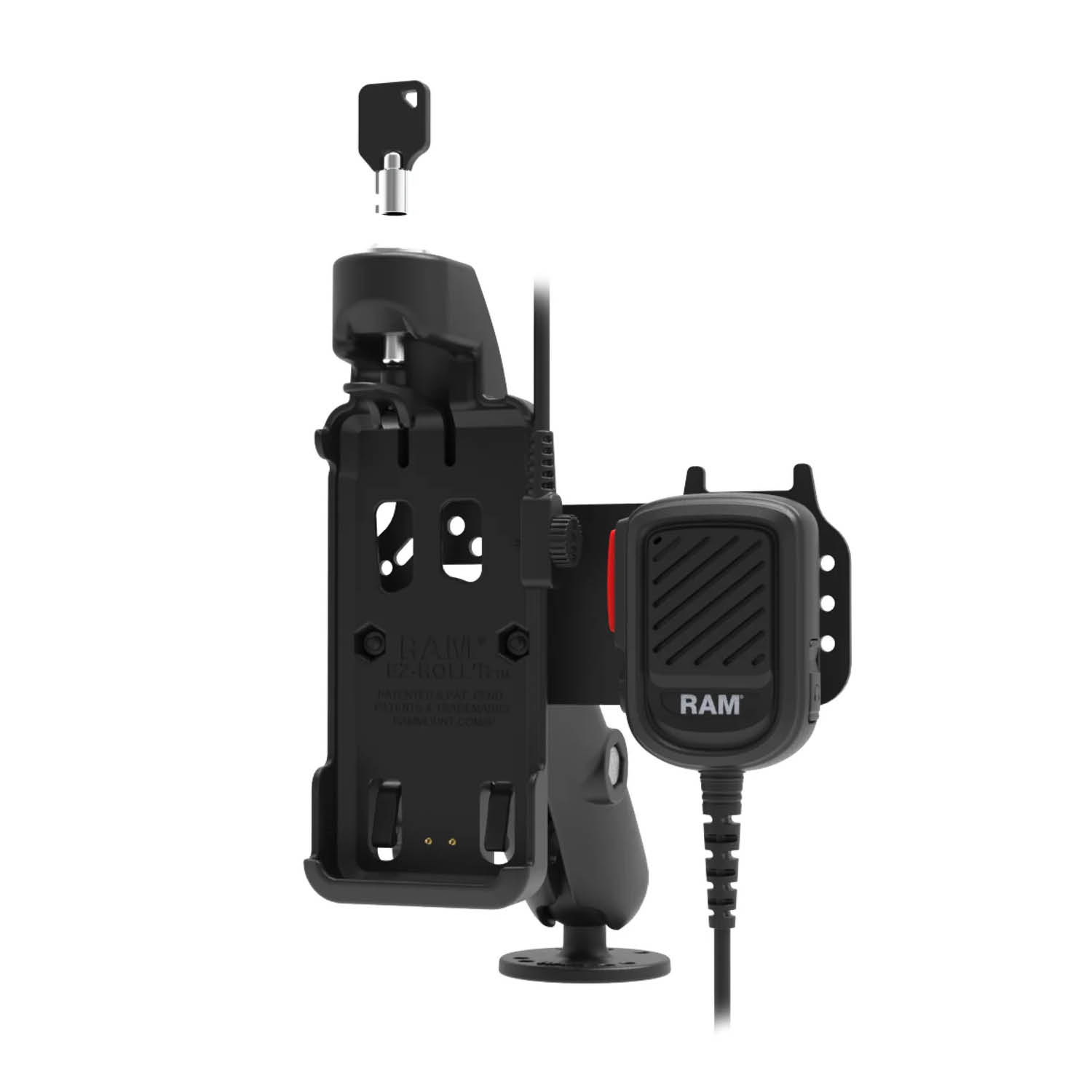

The RAM® PTT Speaker & Hardwire Bundle for Sonim XP5plus (RAM-138-S-SNM3PL-V7B1-1U) is a turn-key push-to-talk solution that will meet the demands of whatever your day brings. This kit is made of the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP5plus, double ball mount with RAM® Pin-Lock™ Security Knob, a RAM® Remote Speaker Mic with a custom connector designed for Sonim, and a mounting bracket.
The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided RAM® Remote Speaker Mic plugs directly into the Sonim unit. Included with the complete bundle is a 10-30V modular vehicle hardwire charger and backing plate hardware.
Features
- Bundle for Sonim XP5plus includes powered locking holder, remote speaker microphone, and mounting bracket for all-in-one communication
- Powered RAM® EZ-Roll'r™ form-fit dock for the Sonim XP5plus; provides charging through two integrated pogo pins and USB-A cable

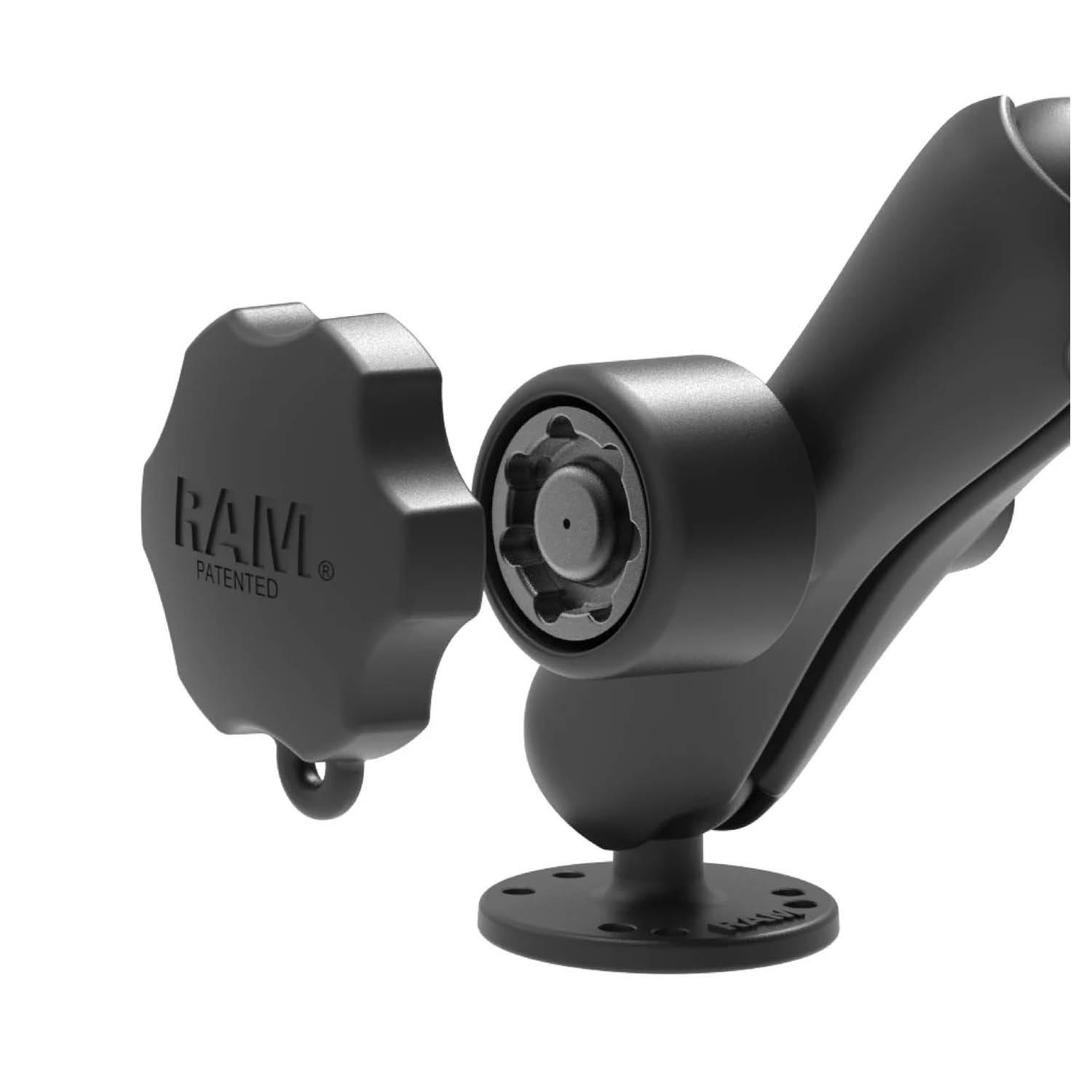

- Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
Specs
Socket to socket length - 4.66"
Hole pattern - 4-Hole AMPS 1.181"x1.496", 3-Hole 120-Degree 1.812" Diameter
Plate size - 2.5" Diameter
Ball size - C Size (1.5")
Weight capacity - Standard Use 4 lbs, Heavy-Duty Use 3 lbs
Input voltage - 10-30 VDC
Output voltage - 5-9 VDC*
Output current - 2.5 A max.
Input connector - Charger Female USB Type A
Input cable length - 1,2 m (including 2 Pole Flat Marine Connector)
Output cable length - 0,2 m
Operating temperature - -10°C to +70°C
Storage temperature - -40°C to +70°C
Regulatory - Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant, FCC, CE, UKCA, IC
Certifications - E-Mark, RCM, IEC/UL 62368-1
| Kugelgröße: | C-Kugel (1.5 Zoll bis 1.8 kg) |
|---|---|
| Lochmaske: | AMPS 4-Loch |
| Montage: | Schrauben |
| Sonim: | XP5plus |
| Hersteller: | National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
| Importeur: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telefon: 030-917471-70 |
| Verantwortlich: | GF Kostja Dümke, info@rammounts.de, 030-917471-70 |
| Warnhinweis: | Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation! |
| EAN: | 793442035050 |
