RAM Mounts GDS® Uni-Conn™ Fahrzeughalterung inkl. PTT Mikrofon mit Lautsprecher für ESChat - C-Kugel (1,5 Zoll), 4-Loch AMPS
889,95 €
Artikel nicht verfügbar – Lieferzeit ca. 7 Wochen.
The GDS® Uni-Conn™ PTT Remote Speaker Mic Bundle for ESChat & Zello (RAM-GDS-U4-RSM-A04) delivers everything you need to enable reliable Push-to-Talk over Cellular (PoC) in your fleet. This bundle does not include an IntelliSkin®, ideal for organizations already using IntelliSkin® device sleeves or deploying a mixed-device fleet within the GDS® Ecosystem™.

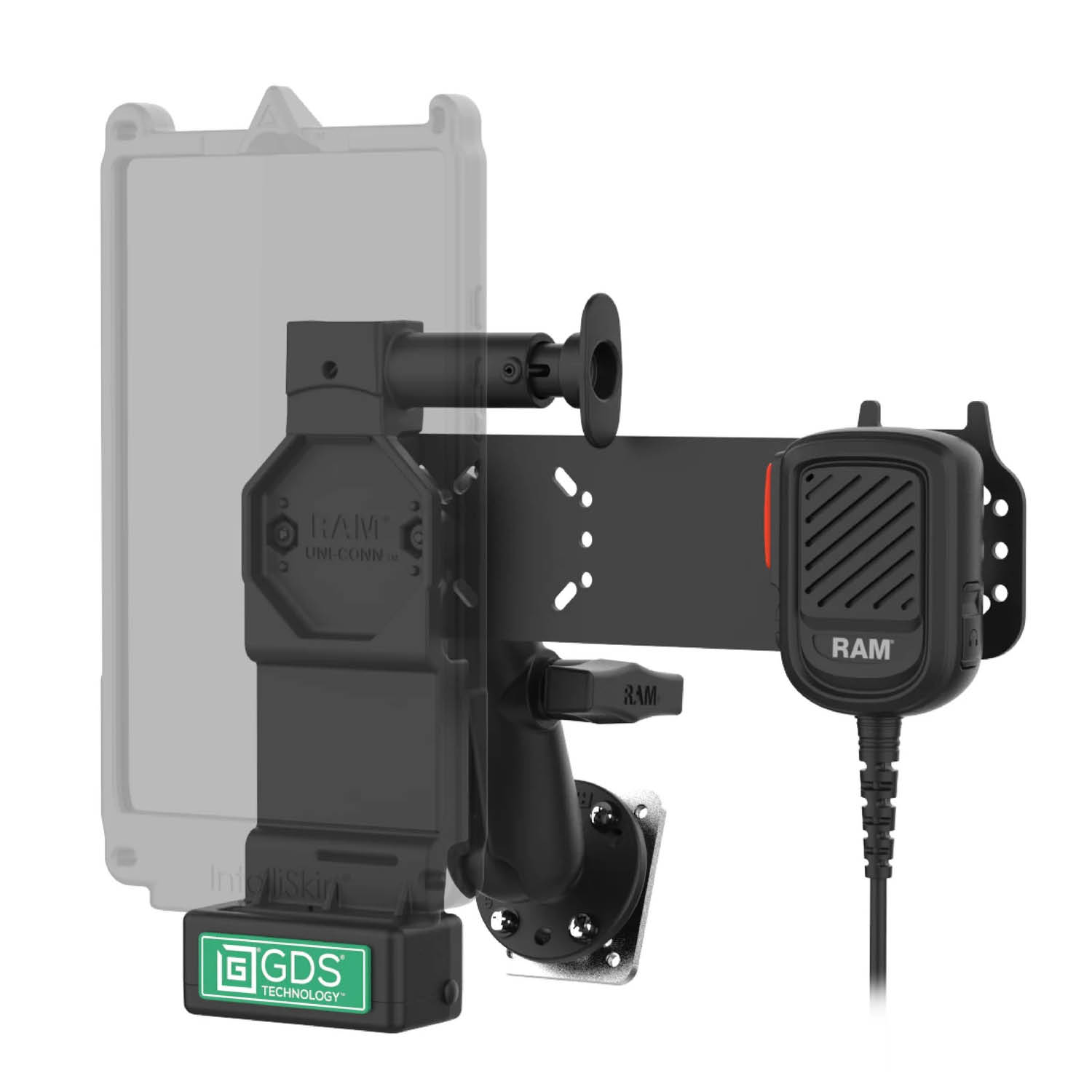

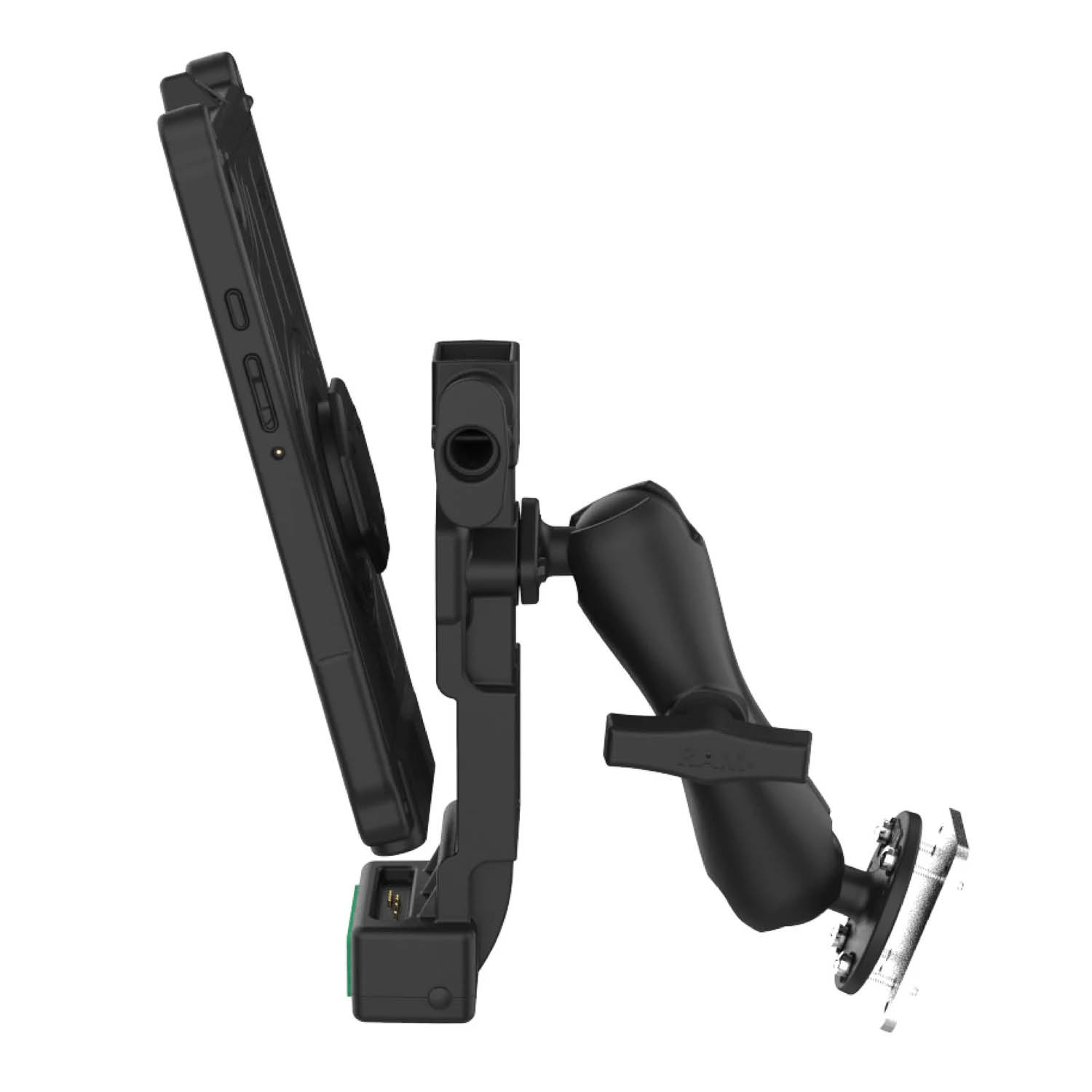

This bundle includes the universal Uni-Conn™ dock with side release button, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). Compatible with ESChat and Zello, it ensures clear, instant communication for fleets, first responders, logistics teams, and mobile workforces.
Features
- GDS® Uni-Conn™ Push-to-Talk mounting bundle designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed (sold separately)
- Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
- Uni-Conn™ dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
- Uni-Conn™ dock features a quick-release button for easy device insertion and removal
Specs
Socket to socket length - 4.66"
Hole pattern - 4-Hole AMPS 1.181" x 1.496", 3-Hole 120-Degree 1.812" Diameter
Ball size - C Size (1.5")
Material(s) - Steel, Marine-grade aluminum, High strength composite
Power specifications Remote Speaker Mic - Operating Voltage 1.2 VDC-5 VDC, Current Consumption 100 UA- 500 UA, Output Impedance @ 1KHZ Max 2.2K Ohms, Signal to Noise Ratio 1KHZ 60+ DB, Max Input SPL 110 DB, Moisture Ingress Rating IP67
Output voltage - 5V-15V @ 3A
Power Output - 45 W
Input connector - USB Type-C, USB Type-C for 1 Peripheral
Input cable length - 215 mm
Output cable length - 215 mm
Peripheral Output - 500 mA
| Kugelgröße: | C-Kugel (1.5 Zoll bis 1.8 kg) |
|---|---|
| Lochmaske: | AMPS 4-Loch |
| Montage: | Schrauben |
| Hersteller: | National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
| Importeur: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telefon: 030-917471-70 |
| Verantwortlich: | GF Kostja Dümke, info@rammounts.de, 030-917471-70 |
| Warnhinweis: | Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation! |
| EAN: | 793442034619 |
