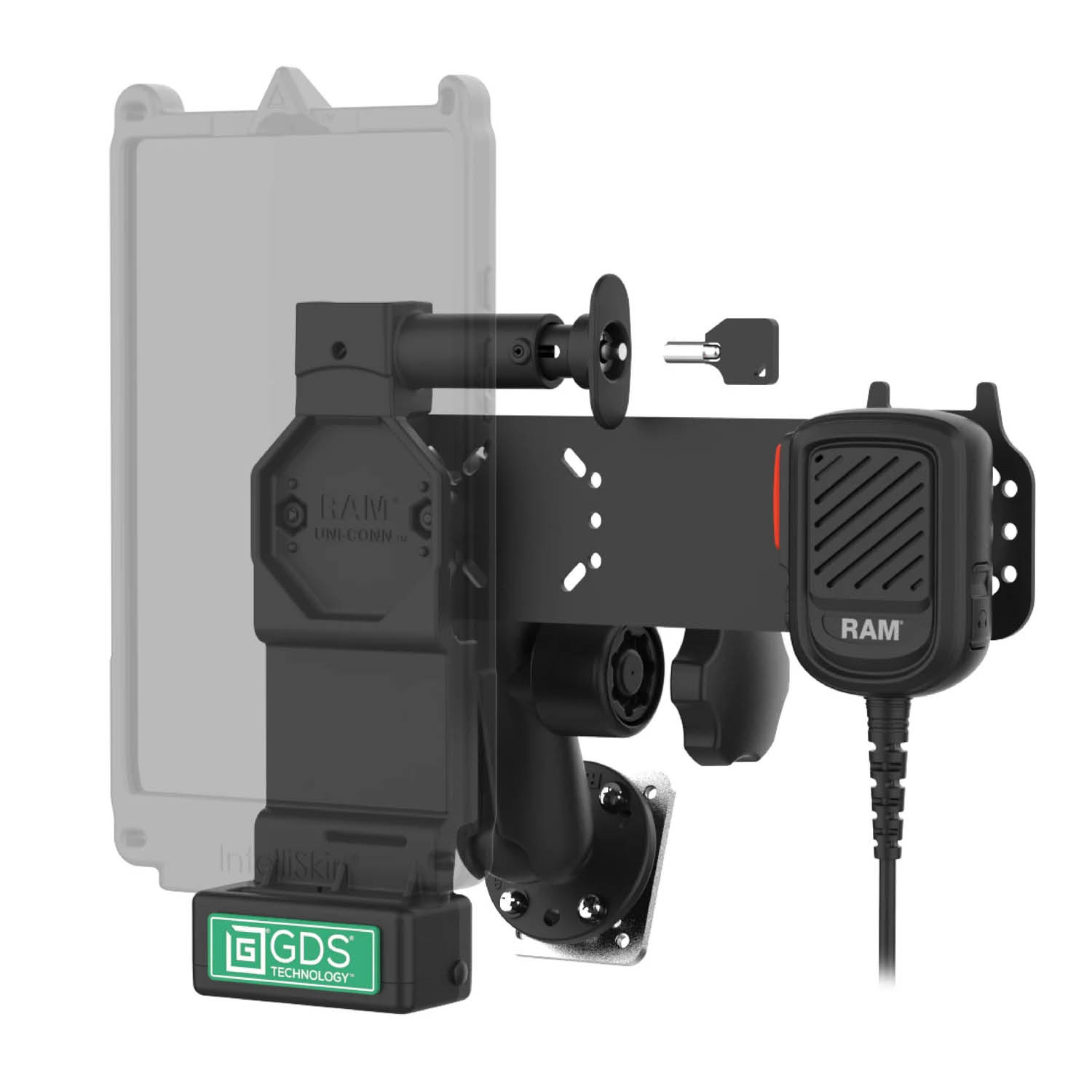

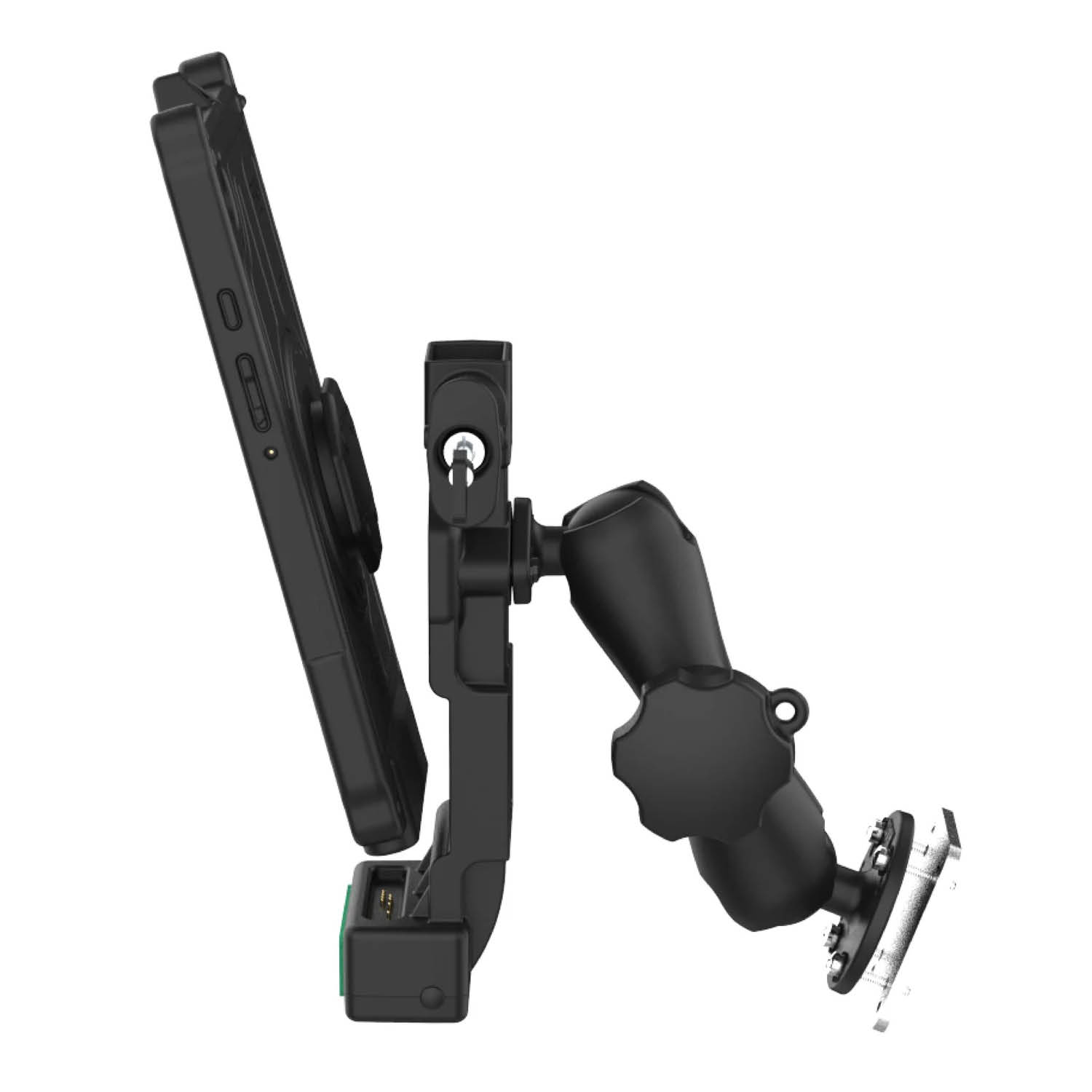

RAM Mounts GDS® Uni-Conn™ Fahrzeughalterung (abschließbar) inkl. PTT Mikrofon mit Lautsprecher für Kodiak - C-Kugel (1,5 Zoll), 4-Loch AMPS
929,95 €
Artikel nicht verfügbar – Lieferzeit ca. 7 Wochen.
The GDS® Uni-Conn™ Locking PTT Remote Speaker Mic Bundle for Kodiak (RAM-GDS-U4L-RSM-A05) delivers everything you need to enable reliable Push-to-Talk over Cellular (PoC) in your fleet. This bundle does not include an IntelliSkin®, ideal for organizations already using IntelliSkin® device sleeves or deploying a mixed-device fleet within the GDS® Ecosystem™.
It includes the universal Uni-Conn™ locking dock with side release button, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). Compatible with Kodiak, the RSM ensures clear, instant communication for fleets, first responders, logistics teams, and mobile workforces. Plus, with locking knobs for theft deterrence, your hardware stays protected in the field.
Features
- GDS® Uni-Conn™ Push-to-Talk mounting bundle designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed (sold separately)
- Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
- Uni-Conn™ dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
- Locking dock and knob provide theft deterrence for added security
Specs
Socket to socket length - 4.66"
Hole pattern - 4-Hole AMPS 1.181" x 1.496", 3-Hole 120-Degree 1.812" Diameter
Ball size - C Size (1.5")
Material(s) - Steel, Marine-grade aluminum, High strength composite
Power specifications Remote Speaker Mic - Operating Voltage 1.2 VDC-5 VDC, Current Consumption 100 UA- 500 UA, Output Impedance @ 1KHZ Max 2.2K Ohms, Signal to Noise Ratio 1KHZ 60+ DB, Max Input SPL 110 DB, Moisture Ingress Rating IP67
Input voltage - 10-30 VDC
Output voltage - 12 VDC
Power Output - 25 W
Input connector - USB Type-C, USB Type-C for 1 Peripheral
Input cable length - 215 mm
Output cable length - 215 mm
Peripheral Output - 500 mA
| Kugelgröße: | C-Kugel (1.5 Zoll bis 1.8 kg) |
|---|---|
| Lochmaske: | AMPS 4-Loch |
| Montage: | Schrauben |
| Hersteller: | National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
| Importeur: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telefon: 030-917471-70 |
| Verantwortlich: | GF Kostja Dümke, info@rammounts.de, 030-917471-70 |
| Warnhinweis: | Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation! |
| EAN: | 793442034640 |
