RAM Mounts Fahrzeug Modular Ladestation (Schlüsselverriegelung) für Samsung Tab Active3 & Active5 - In OEM/RAM Schutzhülle - USB-C Ausgang
479,95 €
Artikel nicht verfügbar – Lieferzeit ca. 7 Wochen.

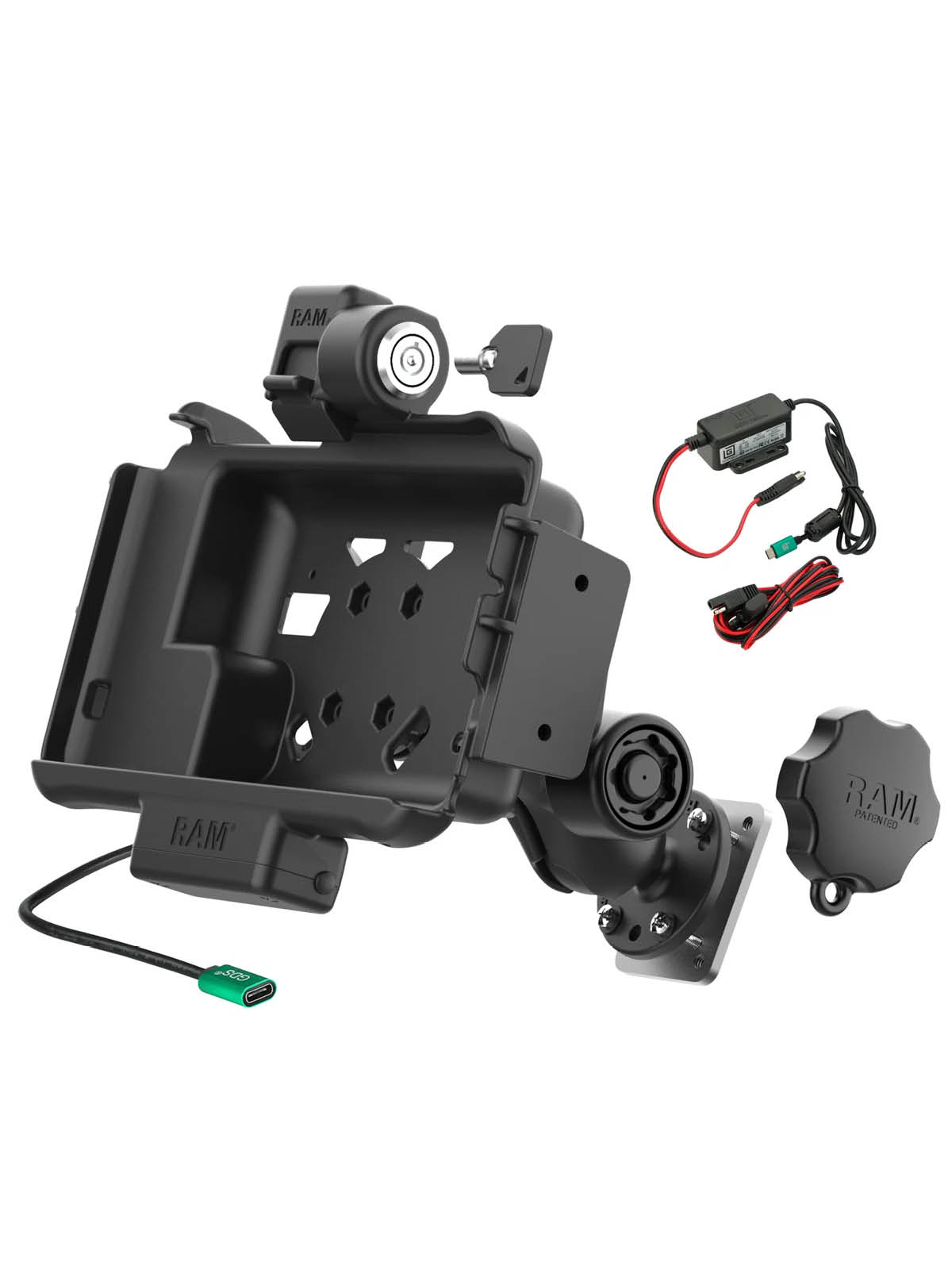

The RAM® Locking Modular Powered Dock & Mount for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPKLN-225-V7CU) is a comprehensive kit of everything needed to deploy the Samsung Tab Active Pro series in your fleet. It contains one locking RAM® USB-C Modular Powered Dock for Tab Active5 & 3, a short C size double ball mount with backing plate and locking arm, cable clamp, and a hardwire charger.
The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place.
Features
- Bundle includes the RAM® USB-C Powered Dock, short C size double ball mount with backing plate and locking arm, cable clamp, and a hardwire charger
- Key locking powered dock supports the Samsung Galaxy Tab Active5 & 3 with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector
- Next gen charging with integrated pogo pin docking contacts that match the Tab Active5 Pro's pogo pads for a fumble-free charging experience and port-protection
Specs
Socket to socket length - 2.5"
Hole pattern - 4-Hole AMPS 1.181" x 1.496"
Input voltage - 10-30 VDC
Output voltage - 5.42-9 VDC
Output current - 2.5 A max.
Input connector - Bare Wire
Input cable length - 2,5m
Output connector - USB Type-C Male
Output cable length - 1 m
Operating temperature - -10°C to +70°C
Storage temperature - -40°C to +70°C
Regulatory - Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant
Certifications - CE, E-Mark, RCM, FCC, UL 62368-1
| Gerätehersteller: | Samsung |
|---|---|
| Kugelgröße: | C-Kugel (1.5 Zoll bis 1.8 kg) |
| Lochmaske: | AMPS 4-Loch |
| Montage: | Schrauben |
| Samsung Tablet: | Galaxy Tab Active3/5 |
| Hersteller: | National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
| Importeur: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telefon: 030-917471-70 |
| Verantwortlich: | GF Kostja Dümke, info@rammounts.de, 030-917471-70 |
| Warnhinweis: | Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation! |
| EAN: | 793442035951 |
