RAM Mounts Fahrzeug-Ladestation für Samsung Tab Active4 Pro mit Aina PTT Vorrichtung - C-Kugel (1,5 Zoll), 4-Loch AMPS

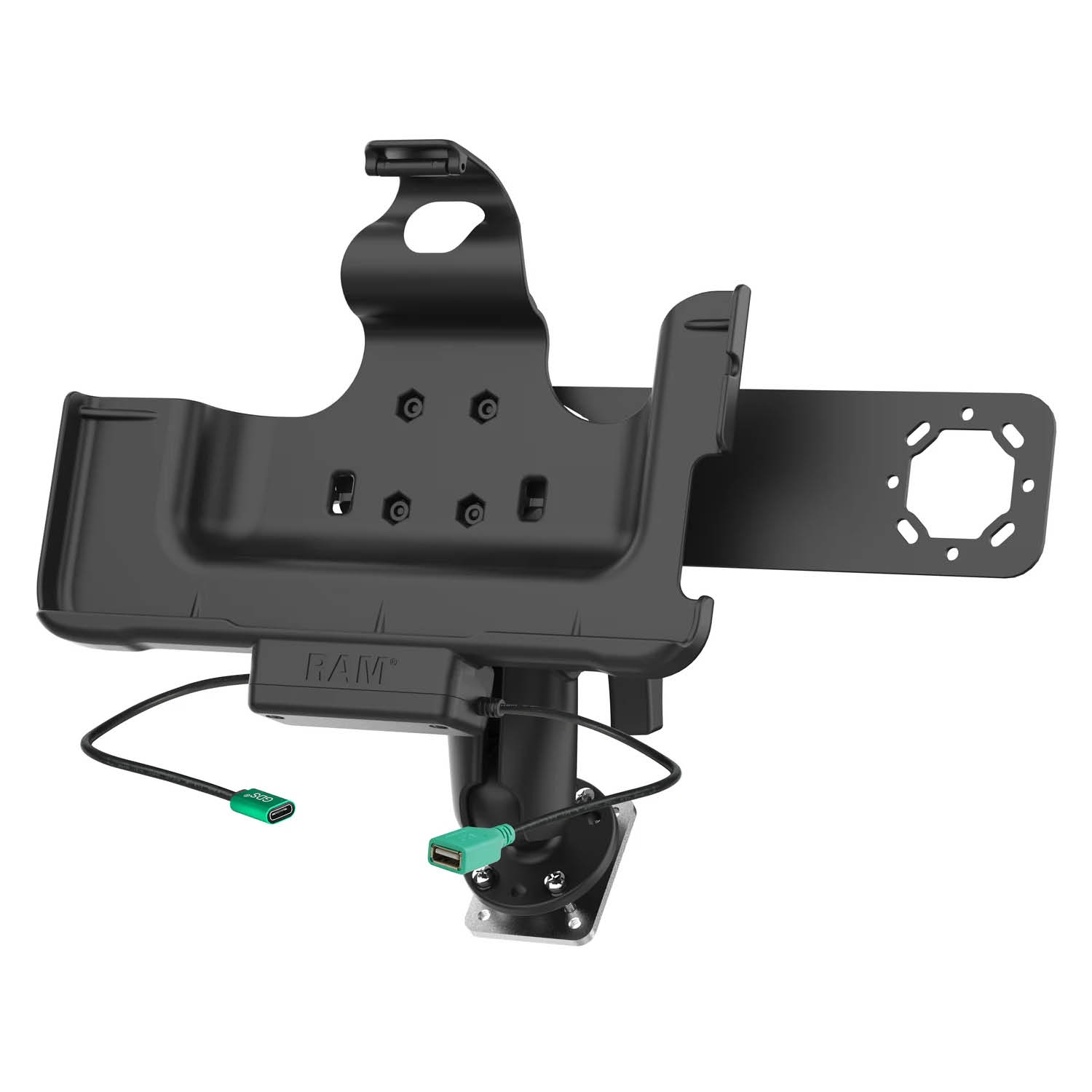

The RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro (RAM-101-SAM52CP-PTT1) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the Samsung Tab Active4 Pro into mission-critical workflows.

Ideal for field operations, public safety, and fleet management, this bundle includes a RAM® Powered Dock, microphone bracket, hardwire charger, and double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-C female power connector for direct connection and power from the hardwire charger, while the AINA Vehicle Charging Cradle connects via the dock's USB-A peripheral pigtail for power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments.

Integrated pogo pins on the dock provide connect directly to the pogo pads integrated on the device, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat and Zello, making it a powerful communication hub for modern mobile teams.

Features

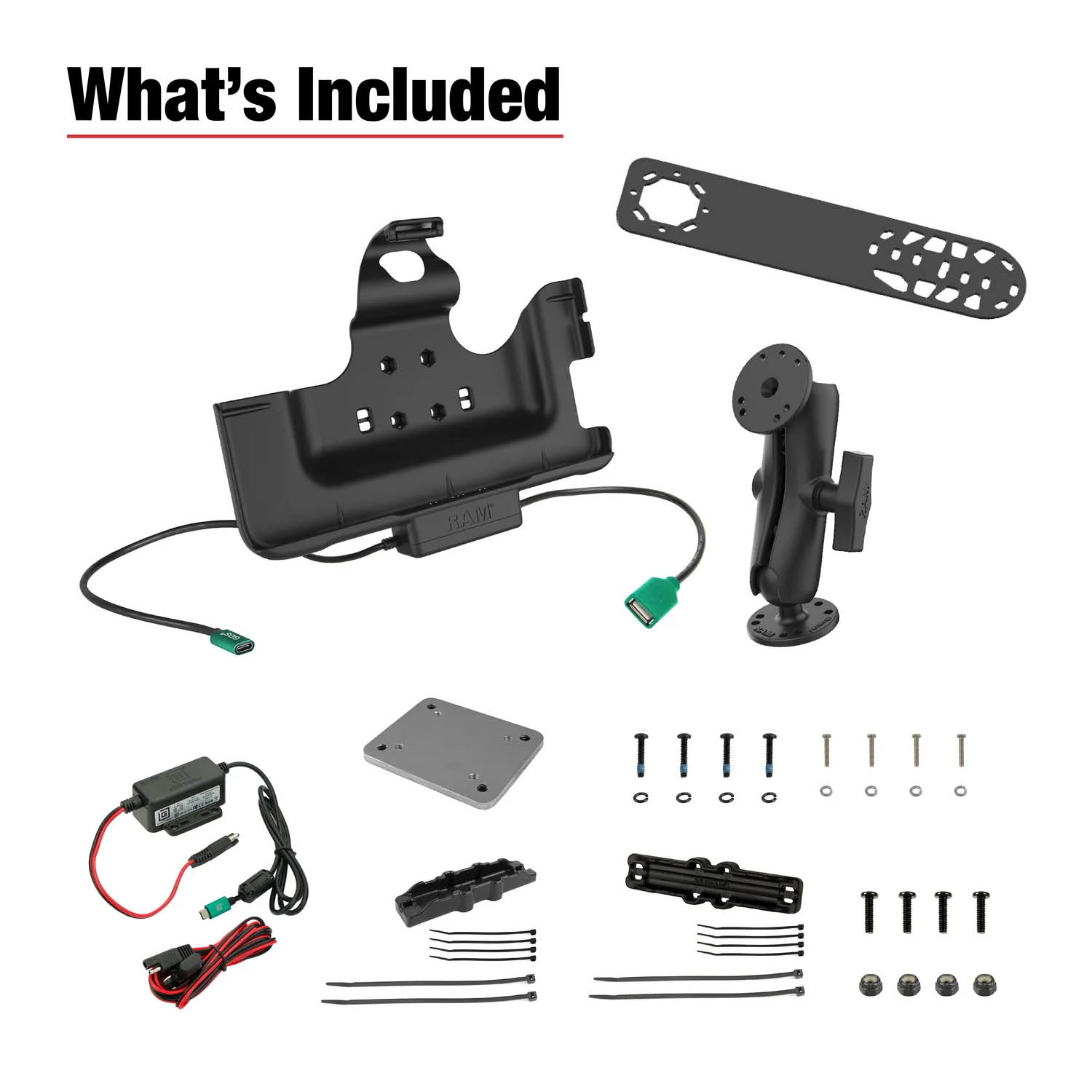

• Bundle includes RAM® Powered Dock, microphone bracket, hardwire charger, and double ball mount with backing plate
• Dock's pogo pins align with device's pogo pads for charging capabilities, USB-C port connects to power
• AINA's Voice Responder RSM recommended for bluetooth PTT; connect AINA's charging vehicle cradle via dock's USB-A pigtail
• Made of high-strength composites for durability and reliability in the most demanding environments

Socket to socket length - 4.66"

Hole pattern - 4-Hole AMPS 1.181" x 1.496"

Ball size - C Size (1.5")

Material(s) - Steel, Marine-grade aluminum, High strength composite

Output voltage - 5.3-5.4 VDC

Power output - 5 VDC

Output current - 500 mA

Input connector - USB Type-C Female

Input cable length - 250 mm

Output connector - USB 1.1 Type A

Output cable length - 250 mm

Peripheral output - 500 mAh

Transfer speed - 12 Mbps
